Home/Store/Laboratory supplies/General consumables, barrel, laboratory glass/Glass building elements, distillation and extraction./Barrels with flat flange
Flat flange reaction vessel, cylindrical, graduated, with tempering and vacuum jacket and drain valve, DN 150, 100 ml, 120 mm, 1 Piece

Flat flange reaction vessel, cylindrical, graduated, with tempering and vacuum jacket and drain valve, DN 150, 100 ml, 120 mm, 1 Piece

SKU 218A.1
€ 1 655,24
In stock
1
Save this product for later
Flat flange reaction vessel, cylindrical, graduated, with tempering and vacuum jacket and drain valve, DN 150, 100 ml, 120 mm, 1 Piece
Product Details
HS code: 70172000
Material: DURAN®-glass
Size: 100 ml
EAN: 8721028095398
Brand: Lenz
Material: DURAN® glass, PA, PTFE.

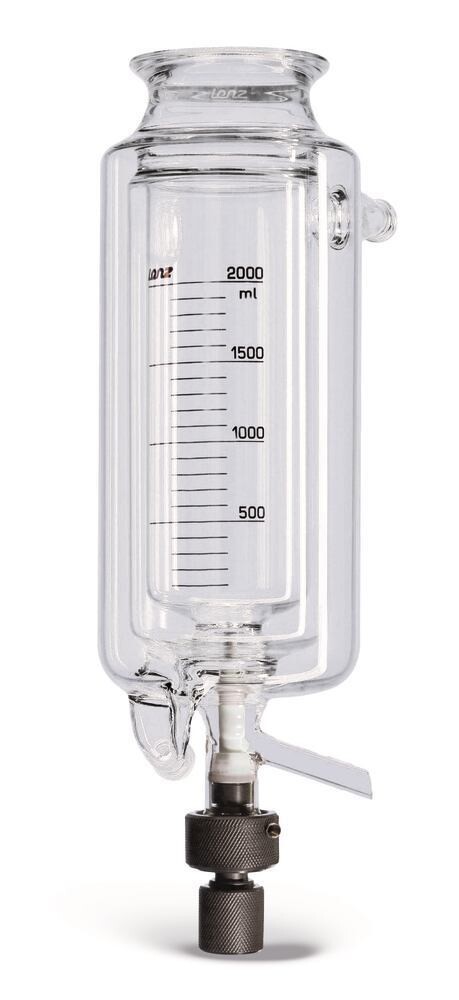

Reaction vessel, cylindrical, graduated with groove in the flat flange. The reaction vessel is enclosed in a vacuum jacket and an additional tempering jacket. The tempering jacket has two connection pieces (ball flange-ball; KF 15 or KF 25). A drain valve with a 10 mm valve hole is embedded in the bottom of the reaction vessel. The flat flange reaction vessel is closed with a lid which is available separately. Both parts are held together by a clamping ring. A sealing ring, or the use of grinding grease, prevents the grinding surfaces from jamming. Suitable silicone and FEP sealing rings are available separately. The flat flange vessel can be combined with other components (e.g. coolers, stirrer shafts and dropping funnels) by means of various standard ground joints in the lid.Fields of application: preparative work, such as reactions, distillations and evaporations.

  • Excellent chemical resistance
  • High temperature resistance
  • Suitable for use under vacuum
  • Flat flange with groove: a sealing ring can be inserted into the groove to seal the vessel tightly


Flat flange reaction vessel, cylindrical, graduated, with tempering and vacuum jacket and drain valve

Delivery incl. flat flange reaction vessel and drain valve. Delivery without flat flange lid, sealing ring and clamping ring; please order separately.
Technical Information
Version DN 150
Nominal volume 100 ml
Ø ext. 120 mm
Ø internal 60 mm
Total height 280 mm
Inner height 115 mm
Ground joint KF ball 15
