Flat flange reaction vial, cylindrical, graduated, with tempering jacket KF connecting piece, DN 100, 3000 ml, 190 mm, 1 Piece

Flat flange reaction vial, cylindrical, graduated, with tempering jacket KF connecting piece, DN 100, 3000 ml, 190 mm, 1 Piece

SKU 21KX.1
€ 1 204,34
In stock
1
Save this product for later
Flat flange reaction vial, cylindrical, graduated, with tempering jacket KF connecting piece, DN 100, 3000 ml, 190 mm, 1 Piece
Product Details
HS code: 70172000
Material: DURAN®-glass
Size: 3000 ml
EAN: 8721028095749
Brand: Lenz
Material: DURAN® glass.

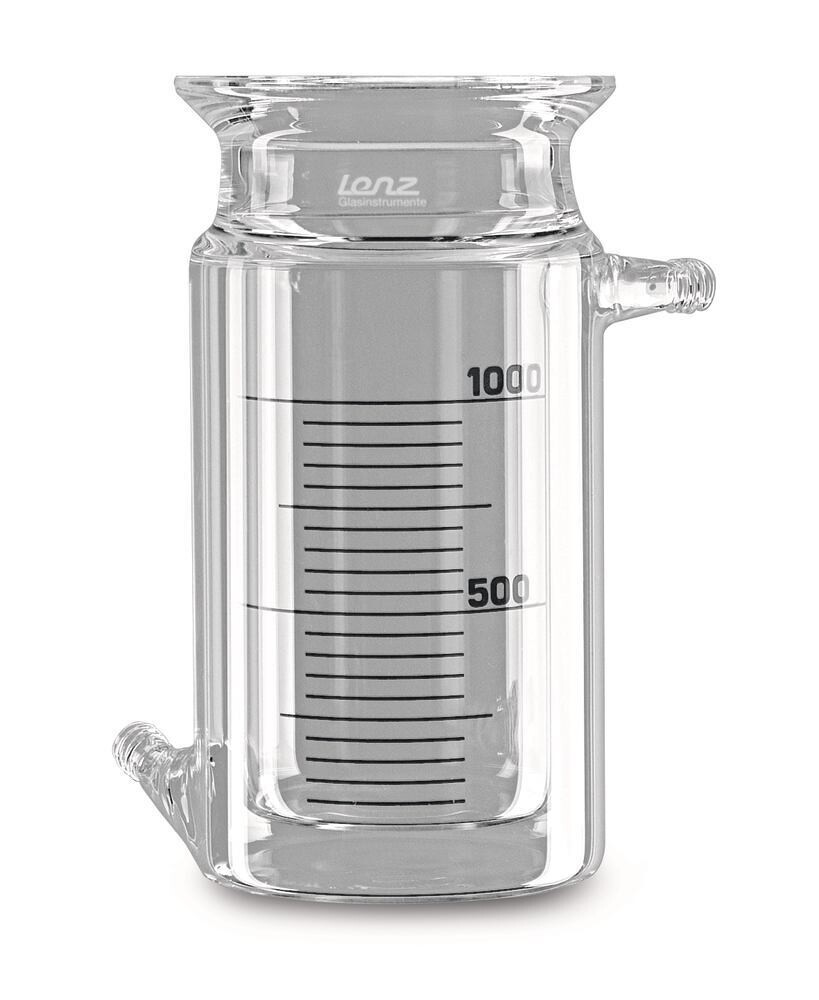

Reaction vial, cylindrical, graduated with groove in the flat flange. The reaction vial is enclosed in a tempering jacket. The tempering jacket has two connection pieces (either GL threaded connection (GL 14 or GL 18) or ball flange connection (ball flange-ball; KF 15 or KF 25). The flat flange reaction vial is closed with a lid which is available separately. Both parts are held together by a clamping ring. A sealing ring, or the use of grinding grease, prevents the grinding surfaces from jamming. Suitable silicone and FEP sealing rings are available separately. The flat flange vial can be combined with other components (e.g. coolers, stirrer shafts and dropping funnels) by means of various standard ground joints in the lid.Applications: preparatory work, such as general reactions, distillation, evaporation and drying, which produce solid or viscous substances.

  • Excellent chemical resistance
  • High temperature resistance
  • Suitable for use under vacuum
  • Flat flange with groove: a sealing ring can be inserted into the groove to seal the vial tightly


Flat flange reaction vial, cylindrical, graduated, with tempering jacket KF connecting piece

Delivery incl. flat flange reaction vial. Delivery without flat flange lid, sealing ring and clamping ring; please order separately.
Technical Information
Version DN 100
Nominal volume 3000 ml
Ø ext. 190 mm
Ø internal 150 mm
Total height 325 mm
Inner height 285 mm
Ground joint KF ball 15
