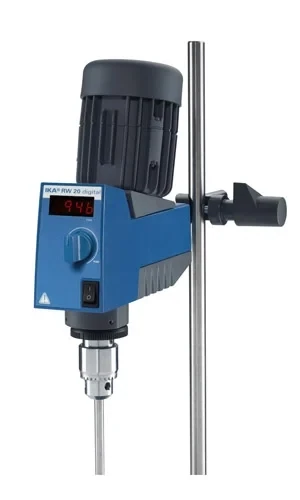

Stirrer RW 20 digital for 20 liters of liquid, 70 W
SKU 0003593000
€ 1 187,60
In stock
1
Save this product for later
Stirrer RW 20 digital for 20 liters of liquid, 70 W
Product Details
Max. stirring volume: 20 L
Viscosity max.: 10000 mPas
Engine power: 70 W
The bestseller in the laboratory:
- With digital display
- Robust, slimline, ergonomic design
- Technical improvements on the trusted RW 20 series designs
- With constant power-drive
- Two speed ranges for universal use from 60 - 2.000 rpm
- Push-through agitator shafts (only when stationary)
- For stirring quantities of up to 20 l (H2O)
| Stirring quantity max. per stirring position (H2O) | 20 l |
| Motor rating input | 70 W |
| Motor rating output | 35 W |
| Speed display | LED |
| Speed range | 60 - 2000 rpm |
| Viscosity max. | 10000 mPas |
| Output max. at stirring shaft | 26 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 150 Ncm |
| Torque max. at stirring shaft at 60 1/min (overload) | 300 Ncm |
| Torque max. at stirring shaft at 100 1/min | 150 Ncm |
| Torque max. at stirring shaft at 1.000 1/min | 24 Ncm |
| Speed range I (50 Hz) | 60 - 500 rpm |
| Speed range II (50 Hz) | 240 - 2000 rpm |
| Speed range I (60 Hz) | 72 - 600 rpm |
| Speed range II (60 Hz) | 288 - 2400 rpm |
| Speed adjustment | stepless |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement | ±30 rpm |
| Stirring element fastening | chuck |
| Chuck range diameter | 0.5 - 10 mm |
| Hollow shaft, inner diameter | 10.5 mm |
| Hollow shaft (push-through - when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Speed control | mechanical |
| Nominal torque | 1.5 Nm |
| Dimensions (W x H x D) | 88 x 294 x 212 mm |
| Weight | 3.1 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 72 W |
