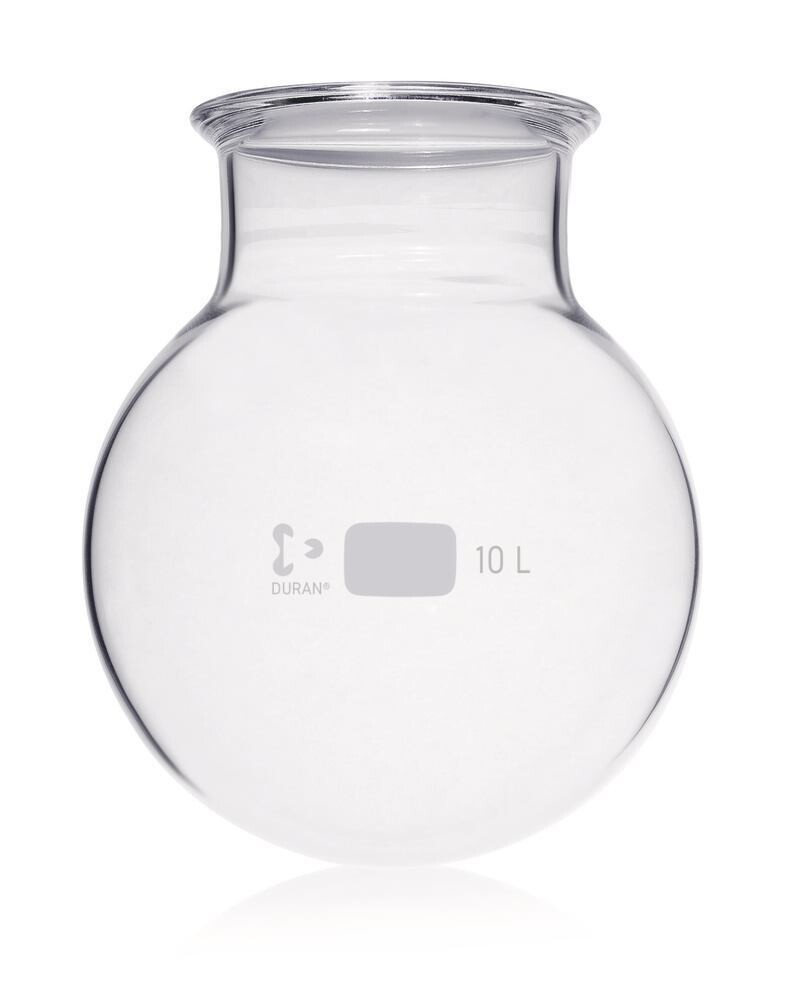

Flat flange round bottom flasks DURAN®, 10000 ml, 280 mm, Height, 340 mm, 1 Piece

Flat flange round bottom flasks DURAN®, 10000 ml, 280 mm, Height, 340 mm, 1 Piece

SKU 1YXK.1
€ 490,06
In stock
1
Save this product for later
Flat flange round bottom flasks DURAN®, 10000 ml, 280 mm, Height, 340 mm, 1 Piece
Product Details
HS code: 70172000
Material: DURAN®-glass
EAN: 8721028093950
Brand: DWK Life Sciences
Material: DURAN® glass, borosilicate glass 3.3. Autoclavable: yes.

Flat flange round bottom flask with groove in the flat flange. Flat flange round bottom flasks are large-volume reaction vials that can be used as an alternative to standard round bottom flasks. The wide neck opening allows easy access to the flask contents. The flat flange round bottom flask is closed with a separately available lid. Both parts are held together by a clamping ring. A sealing ring or the use of grinding grease prevents the grinding surfaces from jamming. Suitable silicone and FEP sealing rings are available separately. The flat flange vessel can be combined with other components (e.g. coolers, stirrer shafts and dropping funnels) by means of various standard ground joints in the lid.Areas of application: preparatory work, such as general reactions, distillation, evaporation and drying, in which solid or viscous substances are produced. The thick-walled construction and geometry make these vessels suitable for safe working under pressure and vacuum.

  • Excellent chemical resistance
  • High temperature resistance
  • Pressure- and vacuum-resistant due to the geometry and the solid wall thickness
  • Use up to the maximum technically possible vacuum (follow the safety instructions)
  • Flat flange with groove: a sealing ring can be inserted into the groove to close the vessel tightly

Note: at a maximum operating temperature of +250 °C and the respective permissible operating pressure, the temperature difference in the glass wall of the flat flange beaker must not exceed 30 °C.

Flat flange round bottom flasks DURAN®

Delivery incl. flat flange round bottom flasks. Delivery without flat flange lid, sealing ring and clamping ring, please order separately.
Technical Information
Version DN 100
Nominal volume 10000 ml
Usable volume 11720 ml
Outer flange Ø 138 mm
Ø ext. 280 mm
Height 340 mm
Max. working pressure 0.5 bar
