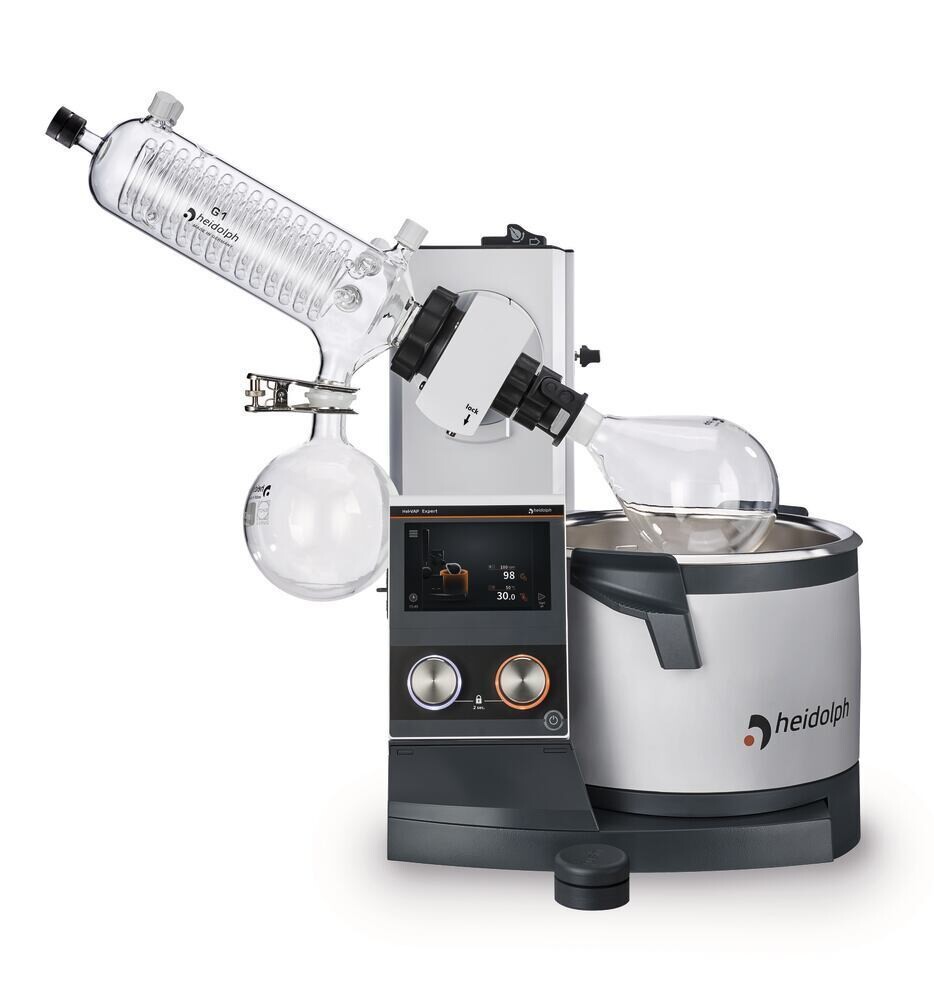

Rotary evaporators Hei-VAP Expert Models with hand lift, Diagonal cooler G1B, Coated, 1 Piece
SKU KHE8.1
€ 5 055,75
In stock
1
Save this product for later
Rotary evaporators Hei-VAP Expert Models with hand lift, Diagonal cooler G1B, Coated, 1 Piece
Product Details
HS code: 84194000
EAN: 8721028073426
Brand: Heidolph
Joint 1: NS 29/32
- With manual or motorised lifting
- 5? touch display with clear display of all values (Basic/Advanced modes)
- Timer (max. 99 h, 99 min)
- Limitation of heating temperature
- Multilingual menu with warning message
- Optional display of boiling temperature (if required, please order boiling temperature sensor separately)
- Direct access to rotation and heating bath via separate rotary pressure controller with LED light activity indicator
- Locking function for values in order to prevent unintentional adjustment or overheating
- Residual heat warning at >50 °C
- Standby key stops all functions and, for motorised lift models, moves the evaporating flask out of the heating bath
- All models are available as a space-saving version with a vertical cooler (type G3) or as a normal version with a diagonal cooler (G1)
- XL cooler for higher evaporation rate thanks to improved tightness and expanded cooling area (standard 1400 cm2, XL models 2200 cm2)
Rotary evaporators Hei-VAP Expert Models with manual lifting
Delivery incl. device with heating bath and glassware. The glassware consists of a glass hollow shaft, cooler, inlet tube, 1000 ml evaporating flask (NS 29/32) and 1000 ml receiving flask (S 35/20).
Technical Information
| Version | Diagonal cooler G1B |
| Glassware | Coated |
| Speed range | 10 to 280 rpm |
| Temperature range | +20 to +210 °C |
| Heating output | 1300 W |
| Setting accuracy | ±1 °C |
| Control deviation | ±1 ° K |
| Ø internal | 255 mm |
| Bath volume | 4,5 l |
| Evaporation rate | at 20/40 °C: Acetone: 2.4/4.7 l/h Ethanol: 1.6/3.2 l/h Water: 0.5/1.0 l/h |
| L x W x H, total | 739 x 477 x 845 mm |
| Mains connection | 230 V, 50/60 Hz |
