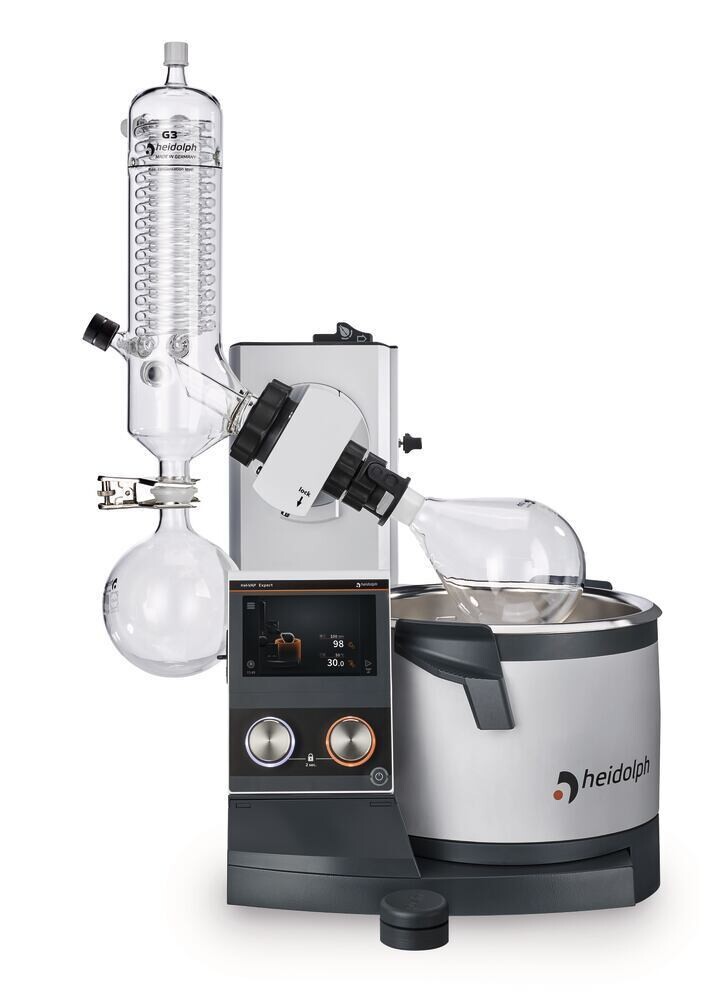

Rotary evaporators Hei-VAP Expert Models with hand lift, Vertical cooler G3B, Coated, 1 Piece

Rotary evaporators Hei-VAP Expert Models with hand lift, Vertical cooler G3B, Coated, 1 Piece

SKU KHH0.1
€ 5 218,39
In stock
1
Save this product for later
Rotary evaporators Hei-VAP Expert Models with hand lift, Vertical cooler G3B, Coated, 1 Piece
Product Details
HS code: 84194000
EAN: 8721028073440
Brand: Heidolph
Joint 1: NS 29/32

  • With manual or motorised lifting
  • 5? touch display with clear display of all values (Basic/Advanced modes)
  • Timer (max. 99 h, 99 min)
  • Limitation of heating temperature
  • Multilingual menu with warning message
  • Optional display of boiling temperature (if required, please order boiling temperature sensor separately)
  • Direct access to rotation and heating bath via separate rotary pressure controller with LED light activity indicator
  • Locking function for values in order to prevent unintentional adjustment or overheating
  • Residual heat warning at >50 °C
  • Standby key stops all functions and, for motorised lift models, moves the evaporating flask out of the heating bath
  • All models are available as a space-saving version with a vertical cooler (type G3) or as a normal version with a diagonal cooler (G1)
  • XL cooler for higher evaporation rate thanks to improved tightness and expanded cooling area (standard 1400 cm2, XL models 2200 cm2)


Rotary evaporators Hei-VAP Expert Models with manual lifting

Delivery incl. device with heating bath and glassware. The glassware consists of a glass hollow shaft, cooler, inlet tube, 1000 ml evaporating flask (NS 29/32) and 1000 ml receiving flask (S 35/20).
Technical Information
Version Vertical cooler G3B
Glassware Coated
Speed range 10 to 280 rpm
Temperature range +20 to +210 °C
Heating output 1300 W
Setting accuracy ±1 °C
Control deviation ±1 ° K
Ø internal 255 mm
Bath volume 4,5 l
Evaporation rate at 20/40 °C:
Acetone: 2.4/4.7 l/h
Ethanol: 1.6/3.2 l/h
Water: 0.5/1.0 l/h
L x W x H, total 739 x 477 x 845 mm
Mains connection 230 V, 50/60 Hz
Show More
