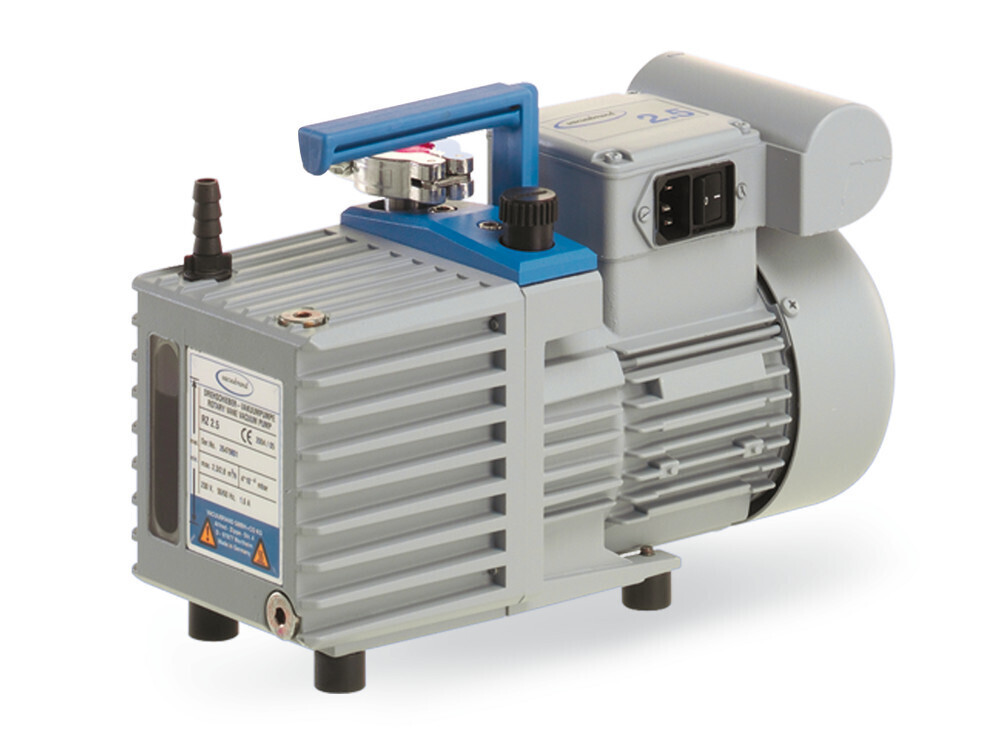

Sliding vane pump XS series Two-stage, RZ 6, 95 l/min, 1 piece
SKU HC94.1
€ 3 485,26
In stock
1
Save this product for later
Sliding vane pump XS series Two-stage, RZ 6, 95 l/min, 1 piece
Product Details
HS code: 84141025
EAN: 8721028082657
Brand: Vacuubrand
For pressure ranges up to 10-3 mbar.
Advantages:
- High suction capacity, even at low ultimate pressure
- High water vapour resistance (with 40 mbar gas ballast)
- Active corrosion protection against ingress of corrosive gases and oil components at a standstill through vacuum-tight closed oil circuit
- New circulation lubrication system
- Compact design and low weight
- Starts reliably even at low temperatures
- Long oil change intervals thanks to high usable oil volume
- Easy maintenance thanks to telescopic design
Rotary vane pump XS series Two-stage
Delivery incl. oil filling, thermal motor circuit breaker, power cord (length: 2 m), clamping and centring ring for suction piece - can also be used for exhaust port with RZ 9.
Technical Information
| Type | RZ 6 |
| Steps | 2 |
| Suction capacity (l/min) | 95 |
| Suction capacity (m³/h) | 5.7 |
| End vacuum (abs.) | 2 x 10-3 mbar |
| End vacuum abs. with gas ballast | 1 x 10-2 mbar |
| Water vapour tolerance | 40 mbar |
| Media temperature | +10 - +40 °C (>100 mbar) 0 - +60°C (<100 mbar) °C |
| Inlet connection | DN 16 small flange |
| Outlet connection | for hose inner Ø 10 mm |
| Oil filling | 0,34-0,73 l |
| Motor power | 180 W |
| Ambient temperature | +12 - +40 °C |
| IP rating | 40 |
| W x D x H | 156 x 420 x 240 mm |
| Weight | 17 kg |
| Mains connection | 200-230 V, 50/60 Hz |
