Sliding vane pump package ROTILABO® CR-DS40, 1 piece

Sliding vane pump package ROTILABO® CR-DS40, 1 piece

SKU 1A9E.1
€ 2 232,66
In stock
1
Save this product for later

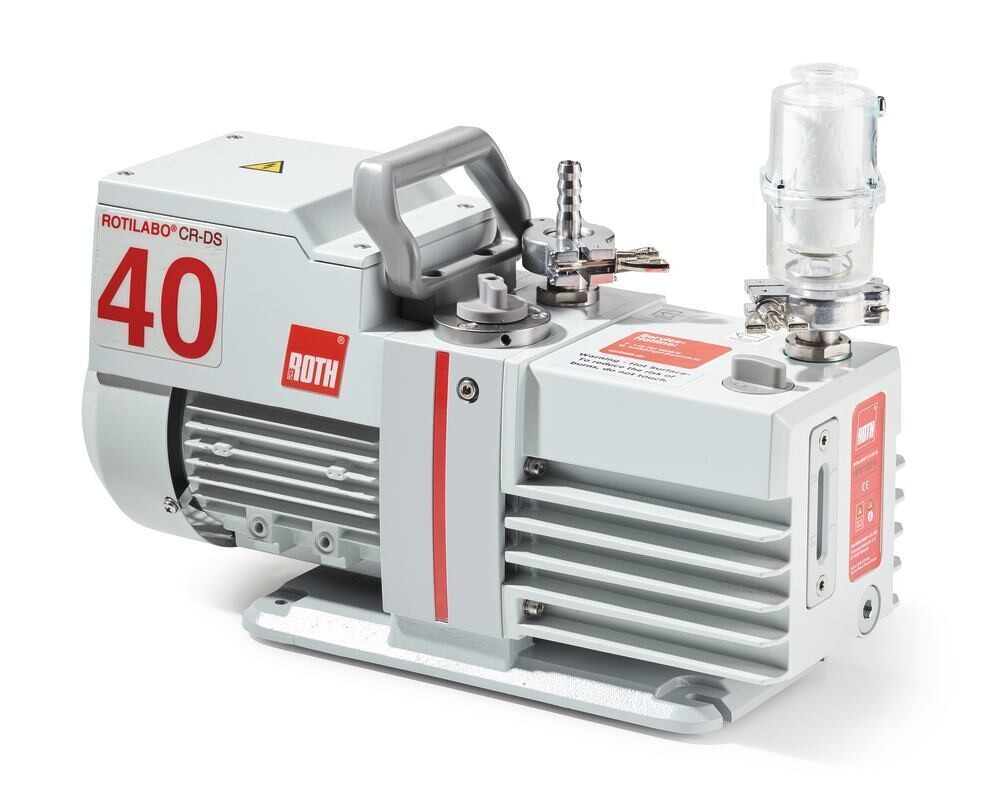

Sliding vane pump package ROTILABO® CR-DS40, 1 piece
Product Details
HS code: 84141025
EAN: 8721028082176
Brand: Gardner Denver Thomas GmbH (Ehm.IImvac)

Robust, two-stage vacuum pump primarily for vacuum ovens, freeze dryers and the Schlenkline technique. Its innovative technology means that it has a long service life and is highly reliable and low-maintenance.

  • Lower operating temperature thanks to optimised cooling, which reduces the chemical activity in the pump and the oil consumption
  • Extended oil change intervals thanks to the large oil storage tank
  • Larger oil capacity results in increased dilution of chemical vapours, minimisation of oil degradation rates and reduction in chemical damage in the pump
  • Decelerated metal corrosion thanks to the additional coating of pump module and oil storage tank which, in conjunction with cold traps, extend the maintenance intervals


Rotary vane pump package ROTILABO® CR-DS40

Delivery incl. oil mist filter, adapter (DN 16 small flange to DN 10/8 mm hose nozzle), 1 l pump oil, funnel, clamping and centring rings.
Technical Information
Type CR-DS40
Suction capacity (l/min) 38
Suction capacity (m³/h) 2.3
End vacuum (abs.) 3 x 10-3 mbar
End vacuum abs. with gas ballast 9 x 10-2 mbar
Media temperature +10 - +40 °C °C
Connection KF DN 16 small flange
Oil filling 0,45 l
Motor power 290 W
Ambient temperature +10 - +40 °C
IP rating 54
Noise level 50 db
W x D x H 384 x 138 x 211 mm
Weight 15 kg
Mains connection 115-230 V, 50/60 Hz
