Temperature controller T-series Model T-570, 1 piece
SKU 1A2N.1
€ 516,49
In stock
1
Save this product for later

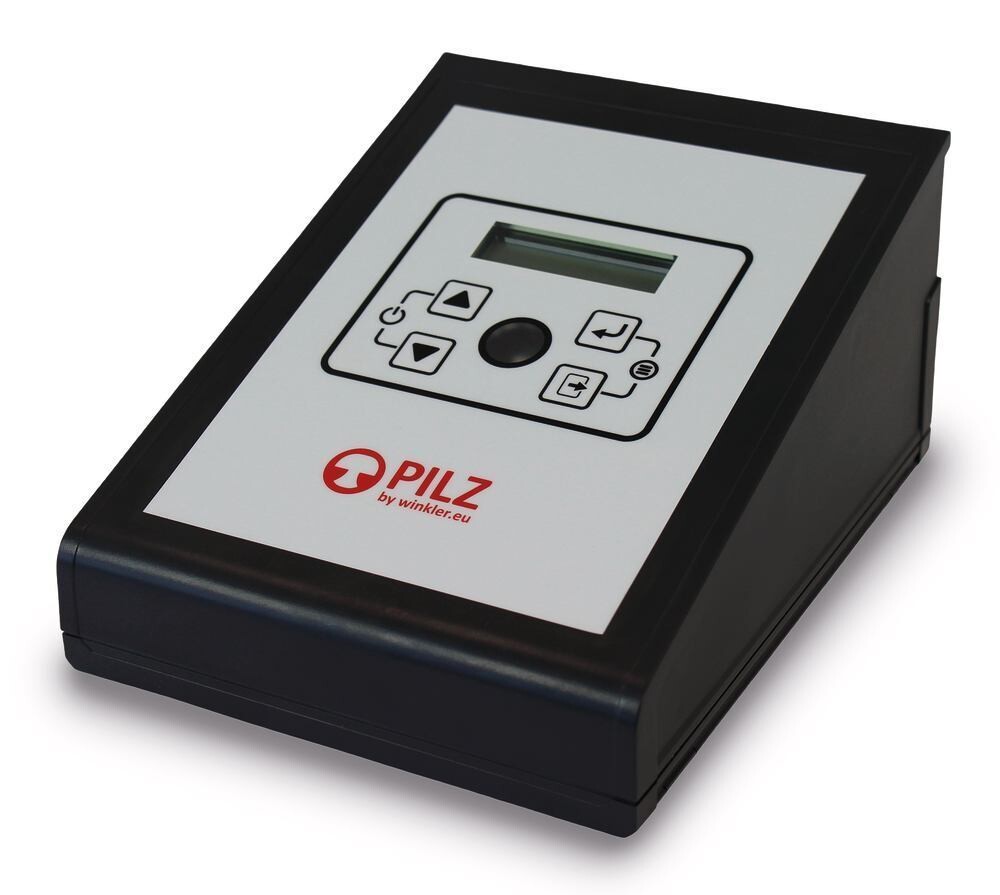

Temperature controller T-series Model T-570, 1 piece
Product Details
HS code: 90321020
EAN: 8721028083227
Brand: Winkler
For controlled and gentle heating of heating mantles and heating cords.
- LCD graphic display
- Digital display of set and actual temperature
- ABS desktop enclosure with anti-slip feet
- Operation via keypad with multilingual menu control (D, E, F, ES). Can optionally be controlled using WRZF310N remote control from a distance of up to 7 m (if required, please order separately).
- Three-coloured LED for displaying the operating statuses
- Adjustable target value for lower/upper limit
- Password menu protection
- With additional cut-off relay
- Control and operation only in conjunction with an optionally available Pt 100 or K type sensor
- Controller dimensions: W 157 x D 205 x H 100 mm
Temperature controller T series Modell T-570
With Schuko socket on the back of the device. Suitable for many heating mantles and heating cords from different manufacturers.
Max. current: 6.3 A.
Technical Information
| Type | T-570 |
| Measuring range | K type: -200 to +1350 °C Pt 100: -120 to +850 °C |
| Resolution | 0,1 °C |
| Setting accuracy | 0,1 °C |
| Rated power | 1450 W |
| Mains connection | 250 V, 50/60 Hz |
Please note:
Older heating mantles may only be operated with a residual current circuit breaker (FI).
