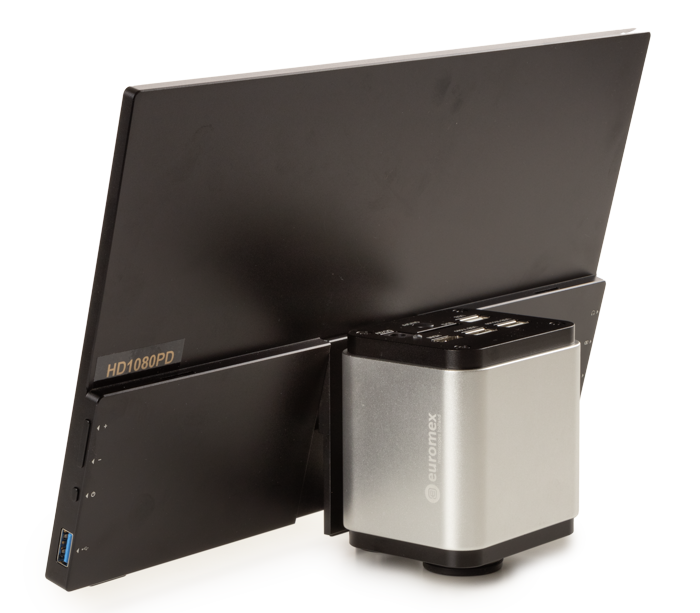

Name: UHD 4K 2160p CMOS kleurencamera VC.3042-HDS met 1/1,8” Sony CMOS sensor, met monitor
Brand: Euromex
SKU: VC.3042-HDS
Price: 1812.92 EUR
Availability: InStock

UHD 4K 2160p CMOS color camera VC.3042-HDS with 1/1.8” Sony CMOS sensor, with monitor

Product Details

Brand: Euromex

Sensitivity mv/lux-sec: 505 mV

To colour: 36 bits

Model: VC.3042-HDS

Pixel Size (µm): 2,0 x 2,0

Resolution: 3840 x 2160

Signal/Noise (db): 40,5

Sensor : 1/1,8” Sony CMOS

[tab name='Description']

with HDMI and USB-2 interface

The Euromex 4K Sony Ultra High Defeition camera offers - with the latest horizontal resolution of 3,840 pixels (2,160 p) and new 4K screens - a new solution in modern microscopy for industry and laboratories where more spatial detail and contrast is needed. This 4KUltra HD image quality camera can be used in combination with biological, metallurgical or stereo microscopes

This standalone camera generates images with excellent color reproduction and at high frame rates, up to 60 frames per second.

The 4K UHD camera can be used in two modes: as a stand-alone using the integrated, mouse-controlled software or in a computer controlled mode. A WiFi dongle is included to connect the camera to the computer (ImageFocus Alpha software), if you wish to use this

Model available with 13 HD screen (VC.3042-HDS)< /p>

_icon_8.3MP < img alt="_icon_usb-2" src="https://www.euromex.com/en/uploads/files/icons-los/icons-camera/_icon_usb-2.jpg"> _icon_windows _icon_apple _icon_linux _icon_100-240Vb _icon_hdmi-B _icon_sd-card _icon_WiFi-dongle _icon_mouse _icon_slide _icon_ImageFocus_Alpha

Features

Ultra HD 2160p, 8.3 MP, 1/8 inch color 4K Sony sensor
Model available with 13 HD screen (VC.3042-HDS)
3840 x 2160 pixels, 30 fps, H264 codec
ADC 16 bits, color depth 36 bits
Live images directly on TV, monitor or projector
li>Stand-alone or in combination with PC
Built-in mouse-controlled software
C-ring interface
4K HDMI 1.4 standard
2061p /1080p auto switching
Interface: HDMI, USB-2, Ethernet, WiFi
SD memory card
Works with ImageFocus Alpha software

td> < /tr>

Model	VC.3042-HDS
Version	UHD-4K
Sensor	1/1.8” Sony CMOS
Pixel size (μm)	2.0 x 2.0 µm
Resolution	3840 x 2160
Colors	36 bits
Signal/Noise (db)	40.5
Sensitivity mv/lux-sec	505 mV
Monitor 13''	yes

[tab name='Technical Specifications']< /p>

Sensor and format
4K Sony, 1/1.8”, HDTV 2160p

Pixels
3840 x 2160 pixels (photo mode)
HDMI 30 fps, USB 30 fps

Pixel size
2.0 x 2.0 μm

Video
2160 pixels video video mode

HD display (VC.3042-HDS)
13”

Scan mode
Progressive scan, "rolling shutter"

Noise
Standard noise reduction

Sensitivity
505 mV

Exposure
Auto/Manual

White Balance
Auto/Manual/ROI

Signal/Noise (db)< br>40.5

Interfaces
Digital HDMI, USB-2, Ethernet, WiFi

Storage
High speed 32 GB SD memory card (Larger capacity SD cards optional, max. 128 GB)

Camera buttons
On/ Off

Mounting
C-ring interface

Power supply
100-240 Vac to 12Vdc/1A

Humidity
30~80%

Operating temperature
-10~ 50 ° Celsius,

Storage temperature
-20~ 60° Celsius

Supplied with
0.5x objective with C-ring, 30mm and 30.5mm adapters for stereo microscopes, 12 V/1 A external power supply, a 32 GB SD memory card, Micro-USB Synchronous cable 1.5 m, HDMI cable, USB mouse, WiFi dongle, 76 x 24 mm calibration plate (1mm/100), cardboard box

< p>PC software
Works with ImageFocus Alpha imaging and measurement software for Windows 10/11 (32 and 64 bit computers) and Linux. A Mac OS version is also provided (with a few feature differences)

PC Requirements
Compatible with Intel Core 2, 2.8 GHZ or higher, 2 GB, USB-2

Product number
VC.3042 / VC.3042-HDS
