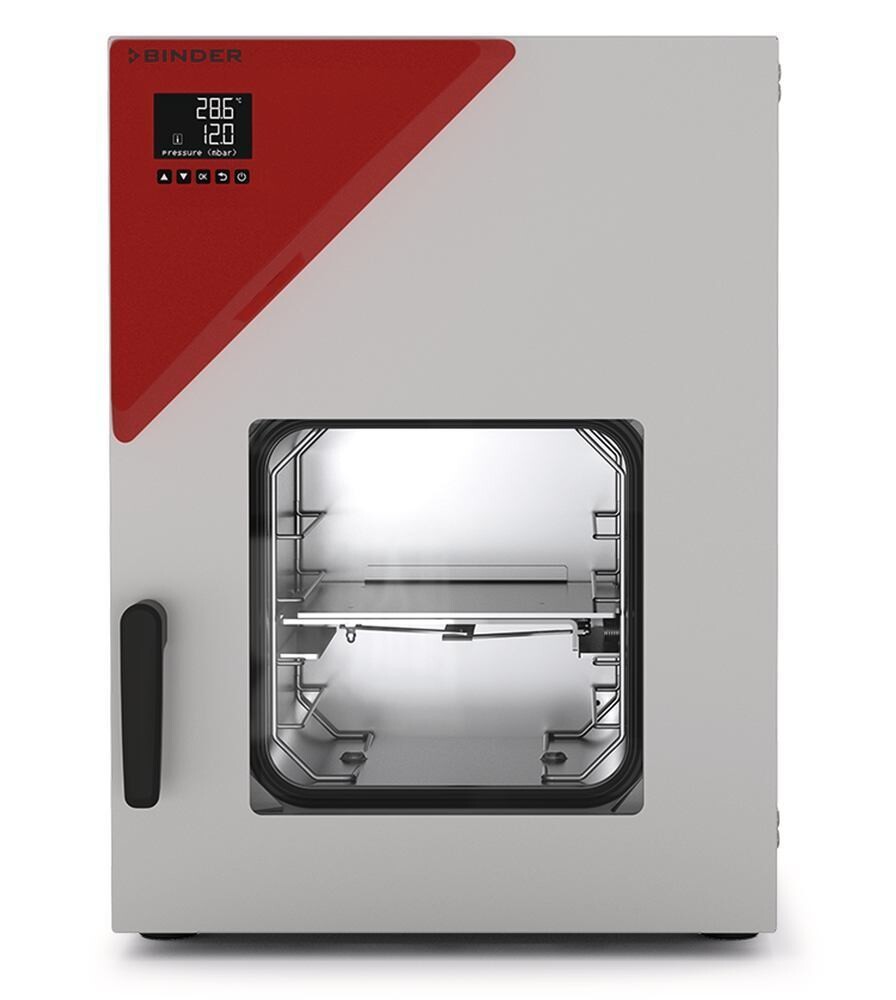

Vacuum drying oven VD series, 24 l, VD 23, 1 piece
SKU 1C6E.1
€ 8 668,28
In stock
1
Save this product for later
Vacuum drying oven VD series, 24 l, VD 23, 1 piece
Product Details
HS code: 84198998
EAN: 8721028079503
Brand: Binder
Fast, gentle drying of temperature-sensitive samples.
- Operating temperature range from 10 °C above room temperature to 220 °C
- Vacuum adjustable in the range 10 to 1100 mbar (end vacuum 0.01 mbar)
- Controller with digital display of pressure and temperature
- Drying process monitoring with automatic aeration at process end
- Internal data logger, measured values in open format readable via USB (approx. 100,000 entries possible, choice of save interval from 1 to 60 inutes)
- USB and Ethernet interface
- Universal aeration, for use with inert gas or ambient air
- Safety glass
- In-house vacuum or a vacuum pump is required for operation
Vacuum drying cabinet VD series
Delivery incl. 1 aluminium insert/expansion rack. Please order vacuum connection set for pumps separately.
Technical Information
| Type | VD 23 |
| Vol. | 24 l |
| Inner width | 285 mm |
| Inner depth | 295 mm |
| Inner height | 285 mm |
| Outer width | 523 mm |
| Outer depth | 413 mm |
| Outer height | 698 mm |
| Spatial temp. deviation | ±1 K |
| Temporal temp. variance | ±0,1 K |
| Rated power | 900 W |
| Connection | Vacuum with small flange 16 DN mm Inert gas with flow limiter 3/8 RP? |
| Weight | 64 kg |
| Mains connection | 200-230 V, 50/60 Hz |
