Vacuum measuring instrument VMpro 2, 1 piece
SKU 1LLE.1
€ 1 306,69
In stock
1
Save this product for later
Vacuum measuring instrument VMpro 2, 1 piece
Product Details
HS code: 90262020
EAN: 8721028082084
Brand: WELCH Vacuum
Robust, durable and reliable. Digital multi-range vacuum meter for measuring the vacuum in the coarse and fine vacuum ranges. Chemically resistant and therefore ideal for corrosive and aggressive gases and vapours. Combined sensor unites PIRANI technology with the benefits of a ceramic capacitive membrane sensor. In the measuring range between 10 mbar and the atmosphere, capacitive membrane technology delivers highly accurate values for reliable pressure measurement, regardless of the type of gas.
- With backlit LCD display for easy readability and for simple monitoring of the vacuum; the current measuring principle is also displayed
- High accuracy and excellent resolution in the atmospheric pressure range to 5x10-4 mbar
- Both pressure sensors are active at all times: With a low vacuum (<1 mbar), the signal from the PIRANI sensor is used exclusively for pressure measurement, and for a weaker vacuum (>10 mbar), only the signal from the capacitive membrane sensor is used. In the mixing area (1-10 mbar), both signals are weighted in proportion to the pressure and the output signal is thus determined
- Can be connected to practically any vacuum pump and any vacuum system
- LED status display

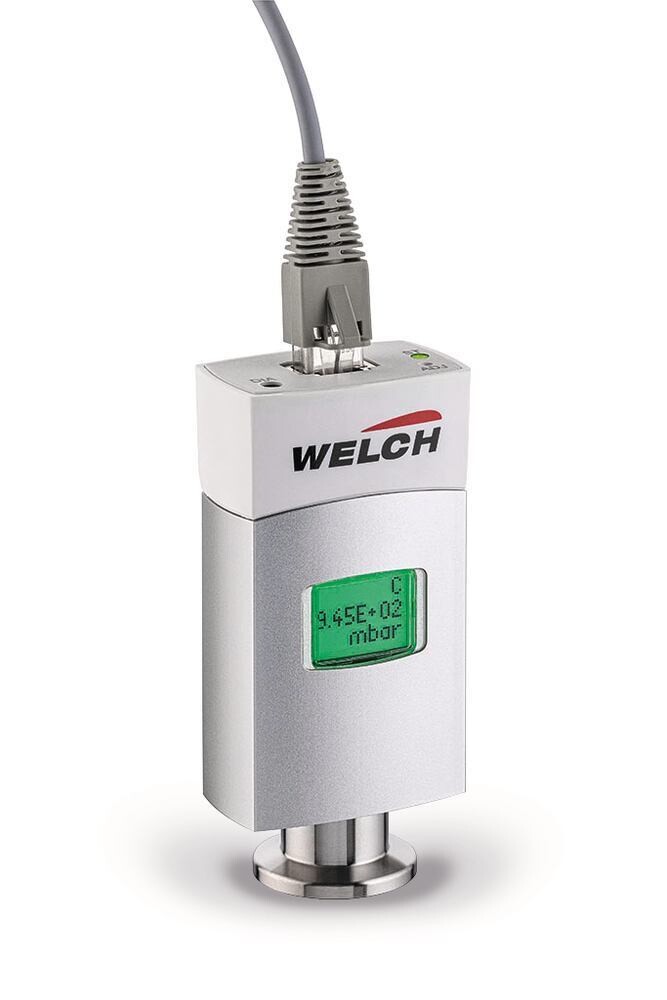

Vacuum meter VMpro 2
Delivery incl. DN 8-10 hose nozzle, T-piece, clamping and centring ring, plug-in power supply.
Technical Information
| Type | VMpro 2 |
| Measuring range | 1500-5x 10-4 mbar |
| Resolution | 1 mbar (1050-100 mbar) 0.5 mbar (99-1 mbar) 0.1 mbar (0.9-0.1 mbar) 0.01 mbar (0.09-0.01 mbar) 0.001 mbar (0.009-0.001 mbar) |
| Measuring principle | capacitive and acc. to PIRANI |
| Accuracy | ±2.5 % of the measured value (950-1050 mbar) ±5 % of the measured value (100-950 mbar) ±15 % of the measured value (1×10-3-100 mbar) ±50 % of the measured value (5×10-4-1×10-3 mbar) |
| Connection | KF DN 16 small flange Nozzle for internal hose Ø 8-10 mm |
| Ambient temperature | +10 - +50 °C |
| W x D x H | 45 x 28 x 94 mm |
| Weight | 120 g |
| Mains connection | 100-240 V, 50/60 Hz |
