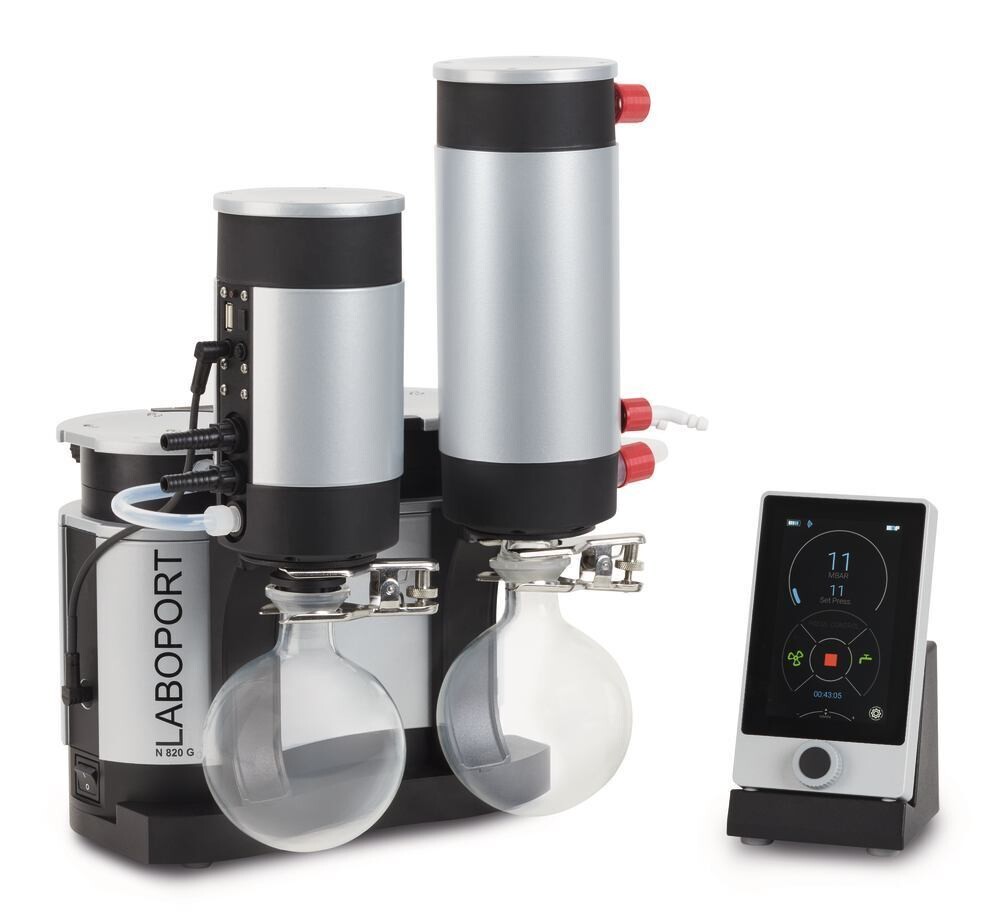

Vacuum system LABOPORT® SC series C 820 G, 1 piece
SKU 1TAL.1
€ 6 428,78
In stock
1
Save this product for later
Vacuum system LABOPORT® SC series C 820 G, 1 piece
Product Details
HS code: 84141089
EAN: 8721028082930
Brand: KNF
Available in various versions and therefore tailor-made for the individual requirements in the laboratory.
The core of the system is the LABOPORT® diaphragm vacuum pump (N 800 G-series): Compact, chemical-resistant and high-power. Even more environmentally friendly thanks to newly developed system components such as separator, high-performance condenser and/or innovative vacuum controller.
- Integrated speed control for precise vacuum
- Integrated gas ballast valve for high vapour and condensate resistance
- Inner media-contact area ATEX-compliant according to “II 3/-G Ex h IIB+H2 T3 Gc internal atmosphere only”; for applications involving working with highly flammable solvents in closed systems. Not approved for ATEX zones
Vacuum system LABOPORT® SC series
Equipped with vacuum controller, coated glass separator (suction side) and high-power condenser (pressure-side).
- Automatic, precise boiling point detection and boiling point tracking using integrated ramp function
- No solvent library required
- Radio remote control for safe operation outside of the enclosed vents
- Simple, intuitive operation via touch-screen display and precise rotary button control
- Four operating modes for nearly all common laboratory applications
- High recovery rates even with solvents that have very low boiling points
Delivery incl. base plate, suction-side separator, pressure-side high-power condenser and vacuum controller with control unit.
Technical Information
| Type | SC 820 G |
| System | SC 820 G |
| Version | separator, condenser, controller |
| Suction capacity (l/min) | 20 |
| End vacuum (abs.) | 6 mbar |
| End vacuum abs. with gas ballast | 17 mbar |
| Overpressure | 0,1 bar |
| Connection | for hose inner Ø 8-9.5 mm |
| Ambient temperature | +5 - +40 °C |
| Materials in contact with media | pump head: PTFE diaphragms: PTFE-coated valves: FFPM hose nozzles: PVDF/FPM |
| W x D x H | 347 x 260 x 416 mm |
| Weight | 13,35 kg |
| Mains connection | 100-240 V, 50/60 Hz |
