Vacuum system LVS 105 T-10 ef+, 1 piece
SKU NH35.1
€ 4 900,07
In stock
1
Save this product for later
Vacuum system LVS 105 T-10 ef+, 1 piece
Product Details
HS code: 84141089
EAN: 8721028083036
Brand: WELCH Vacuum
Specially designed for rotary evaporators, distillation, filtration, vacuum ovens and vacuum drying. With chemical-resistant diaphragm vacuum pump and vacuum controller VCpro600. To ensure a freely selectable vacuum of ±1 mbar, the pump speed is continuously adapted to the gas load.
Advantages:
- Faster process results are ensured by constant evaporation and degassing
- Automatic vacuum adjustment and control
- Controller with large, multilingual colour display and light/dark screen mode for optimum visibility
- Integrated solvent library with stored distillation-specific parameters and freely adjustable boiling points; storage of individual pressure curves for novel processes possible
- With communication interface for remote control/monitoring, for downloading logged process data and for software updates
- Low-noise operation through speed reduction
Vacuum system LVS 105 T-10 ef+

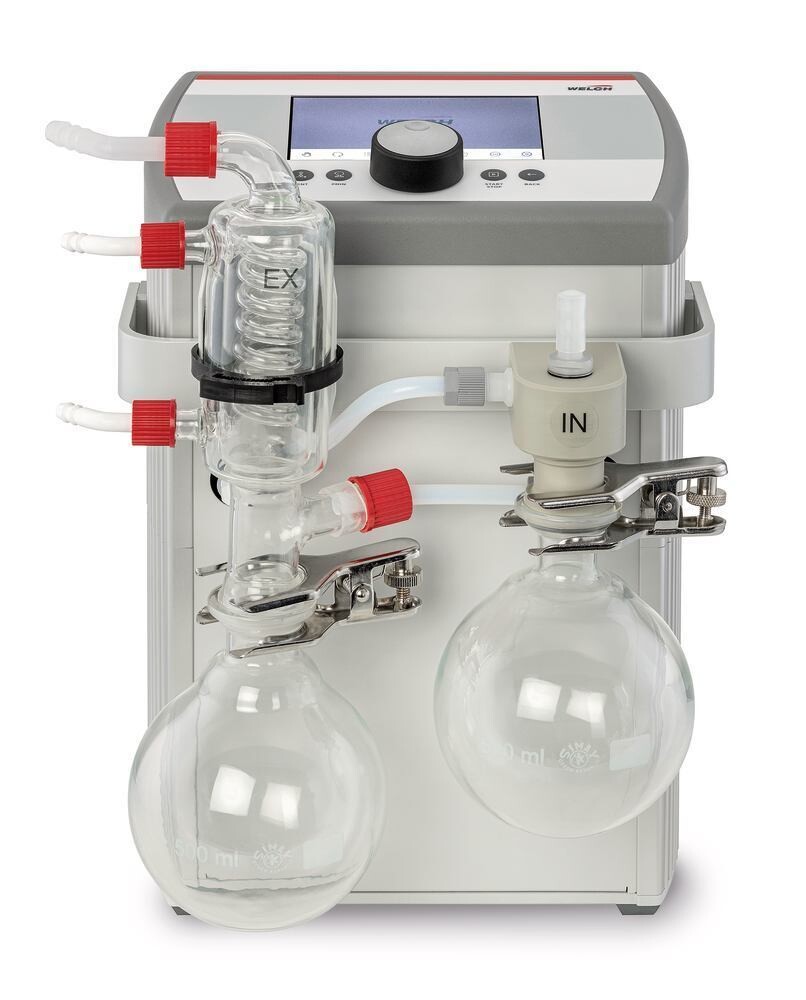

Delivery incl. chemical-resistant diaphragm pump, built-in controller, ecoflex control unit, suction-side separator with 500 ml round bottom flask, pressure-side intensive cooler with 500 ml round bottom flask and safety valve.
Technical Information
| Type | LVS 105 T-10 ef+ |
| System | LVS 105 T-10 ef+ |
| Suction capacity (l/min) | 18 |
| End vacuum (abs.) | 2,0 mbar |
| Connection | for hose inner Ø 8 mm |
| Materials in contact with media | pump head: PTFE with carbon fibre reinforcement diaphragms: elastomer with PTFE coating valves: PEEK seals: EPDM screw fittings/connecting elements: PP, PVDF vacuum hose: PTFE |
| Port | RS 232, LAN |
| W x D x H | 250 x 260 x 435 mm |
| Weight | 9,5 kg |
| Mains connection | 115-240 V, 50/60 Hz |
