Vacuum system MD 4 series MD 4C NT +2AK, 1 piece
SKU 1TE0.1
€ 5 983,60
In stock
1
Save this product for later
Vacuum system MD 4 series MD 4C NT +2AK, 1 piece
Product Details
HS code: 84141089
EAN: 8721028082978
Brand: Vacuubrand
For evacuating, evaporating and pumping out gases and vapours.
- Exceptional chemical and condensate resistance
- Very high delivery rate almost up to the very low end vacuum
- Particularly low end vacuum, even with open gas ballast valve
- Very quiet and low-vibration operation
Application: Vacuum concentrators, rotary evaporators and vacuum drying cabinets

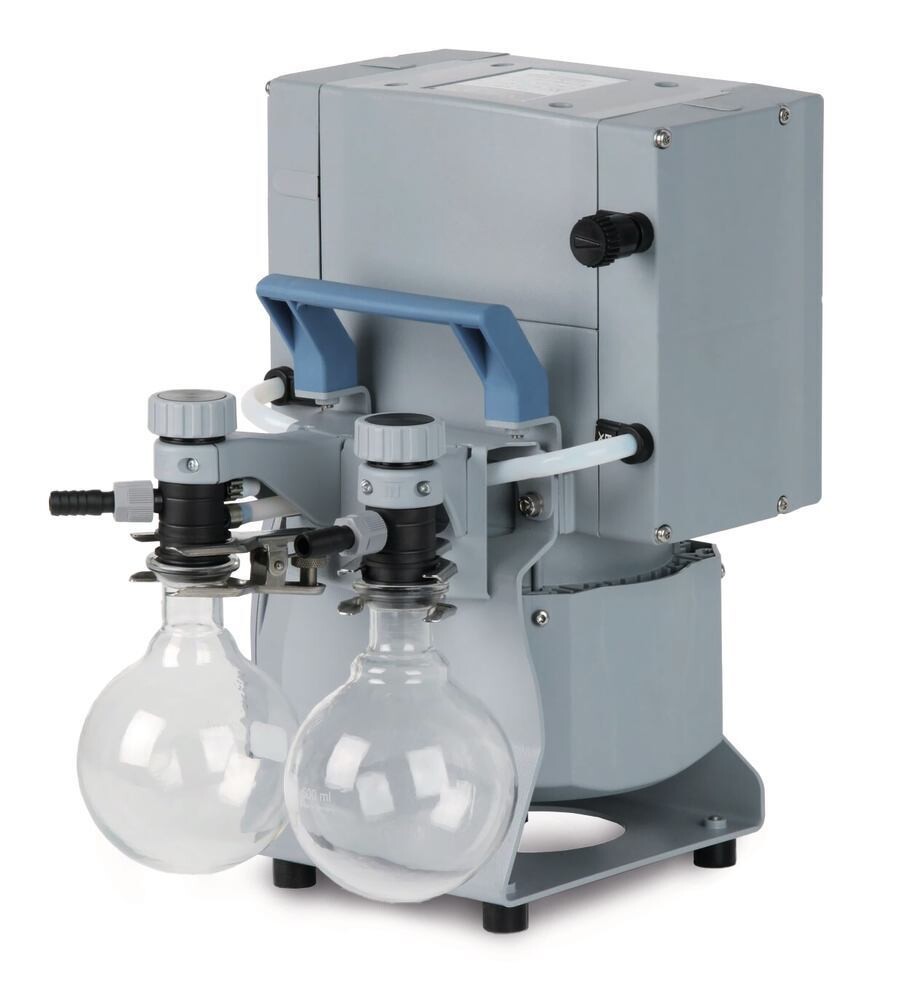

Vacuum system MD 4 series MD 4C NT +2AK
For applications where pressure-side condensation of solvent vapours is not required.
- Suction-side separator (AK, glass with protective coating) keeps back particles and liquid droplets
- Pressure-side separator (AK, glass with protective coating) collects condensate, prevents condensate flowing back into the pump, softens exhaust noises and thereby enables pumps to operate extremely quietly
Delivery incl. suction-side and pressure-side separator.
Technical Information
| Type | MD 4C NT +2AK |
| System | MD 4C NT +2AK |
| Pump type | MD 4C NT |
| Suction capacity (l/min) | 57 |
| End vacuum (abs.) | 1,5 mbar |
| End vacuum abs. with gas ballast | 3 mbar |
| Overpressure | 0,1 bar |
| Inlet connection | for hose inner Ø 8 mm |
| Outlet connection | for hose inner Ø 8 mm |
| Ambient temperature | +10 - +40 °C |
| Materials in contact with media | ETFE pump head, carbon fibre-reinforced diaphragms: PTFE valves: FFKM |
| Motor power | 250 W |
| L x W x H | 319 x 243 x 374 mm |
| Weight | 16,7 kg |
| Mains connection | 230 V, 50/60 Hz |
