For evacuating, evaporating and pumping out gases and vapours in chemical, biological and pharmaceutical laboratories.
For applications where pressure-side condensation of solvent vapours is not required.
Application: vacuum concentrators, gel dryers and filtration

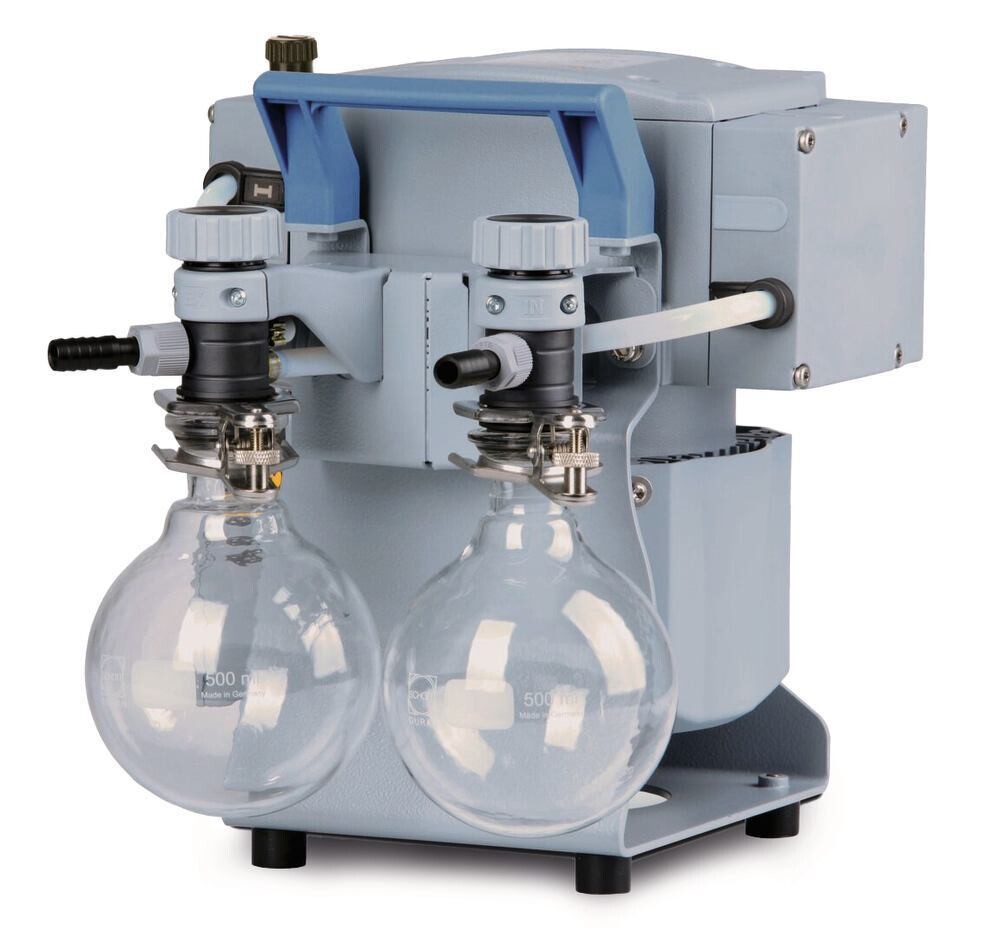

Type | MZ 2C NT +2AK |
System | MZ 2C NT +2AK |
Pump type | MZ 2C NT |
Suction capacity (l/min) | 33 |
End vacuum (abs.) | 7 mbar |
End vacuum abs. with gas ballast | 12 mbar |
Overpressure | 0,1 bar |
Inlet connection | for hose inner Ø 8-10 mm |
Outlet connection | for hose inner Ø 8-10 mm |
Ambient temperature | +10 - +40 °C |
Materials in contact with media | ETFE pump head, carbon fibre-reinforced diaphragms: PTFE valves: FFKM |
Motor power | 180 W |
L x W x H | 319 x 243 x 309 mm |
Weight | 13,6 kg |
Mains connection | 230 V, 50/60 Hz |
