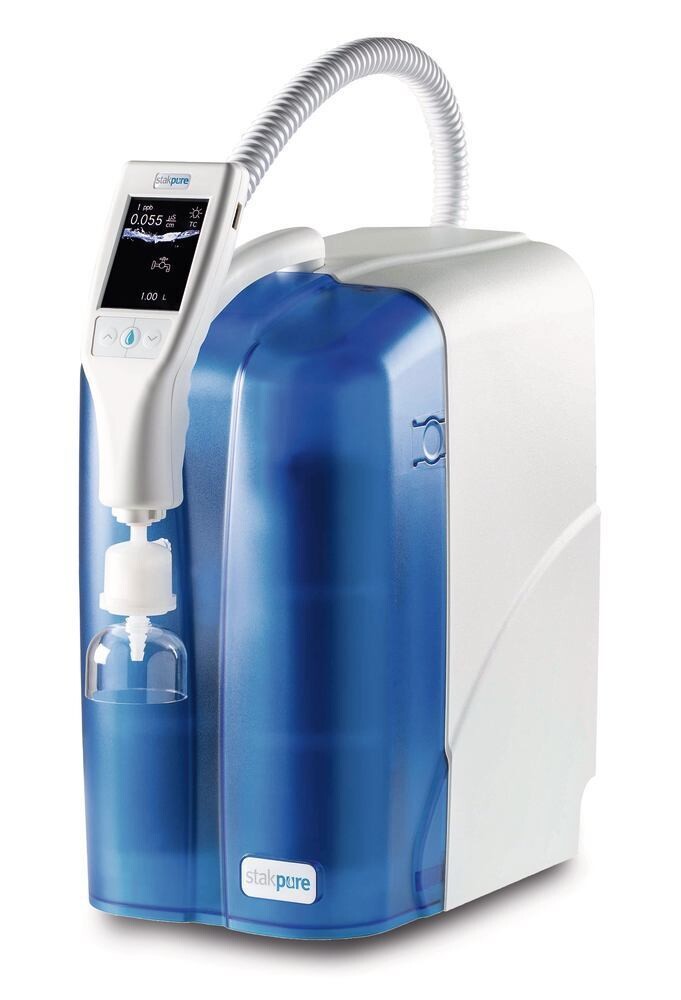

Name: Pure and ultrapure water system OmniaTap xstouch Blueline series OmniaTap xstouch 8 UV-TOC/UF, 1 Piece(s)
Brand: stakpure
SKU: 1TEN.1
Price: 8005.74 EUR
Availability: InStock

Pure and ultrapure water system OmniaTap xstouch Blueline series OmniaTap xstouch 8 UV-TOC/UF, 1 Piece(s)

Product Details

HS code: 84212100

EAN: 8721028176196

Brand: stakpure

The OmniaTap xs^touchBlueline device series represents the ideal system for providing small quantities of pure and ultrapure water for analytical and life sciences laboratory applications, with a compact design optimised for resource conservation. These devices can be connected directly to the drinking water supply. The OptiFill^touch control and monitoring unit, supplied as standard, provides a supply of type I ultrapure water and enables convenient and precise filling of laboratory vessels. The integrated 7 l tank with recirculation maintains a consistent type II water quality level. Downstream end devices can be supplied with type II pure water via an optional pressure outlet.

Compact design
Space-saving mounting on a laboratory bench or optionally on a wall
Usable with water from a drinking water supply
Digital OptiFill^touch control and monitoring unit with colour-touch display
Three language settings available: DE, EN, FR
Dispenser has a swivel range of up to 170°
Sampling volume individually adjustable
Can be operated with laboratory gloves
With real-time TOC monitoring
Adjustable limit values for conductivity and TOC
Password access and error memory
Integrated pressure reducers
Leak sensor
Permanent data storage for all quality parameters
Innovative monitoring and display of the cartridge capacity
RS 232 port and USB port
Automatic voltage adjustment
Ready to use, ready to connect, incl. filter cartridges

Feed water requirements: Drinking water acc. to DIN 2000
Feed water temperature (°C)	+2-35
Feed water pressure (bar)	0.5-6
Inlet conductivity (µS/cm)	<2000
Silt density index (SDI)	<10
Dissolved CO2 (ppm)	<30
Free chlorine (ppm)	<3
TOC (ppm)	<1
Hardness (as CaCO3)*	<300
Silica (ppm)	<30
pH range	4-10
Note*: For higher values, pretreatment must occur first.

Note: the specified TOC and endotoxin values may vary depending on the quality of the feed water. A 0.2 µm sterile filter capsule or bio end filter (available as an option) is needed to meet the requirements for particle and bacteria content. The RNase, DNase and protease content specifications can only be achieved with the OmniaTap xs^touch UV-TOC/UF in combination with the bio end filter, which is available as an option.

Pure and ultrapure water system OmniaTap xs^touchBlueline series OmniaTap xs^touch8 UV-TOC/UF

Typical applications: molecular biology and microbiology as well as cell culture media.

Delivery incl. OmniaTap xs^touch Blueline ultrapure water system, RO cartridge, ultrapure water cartridge, sterile filter capsule (0.2 µm), sterile overflow, sterile breather filter, UV lamp and ultrafiltration module (UF). The bio end filter is available as an option.

Technical Information

Type	OmniaTap xs^touch8 UV-TOC/UF
Vol.	7 l
Conductivity of high-purity water, type I	0.055 µS/cm
Conductivity of pure water, type II	0.067 - 0.1 µS/cm
Resistance of high-purity water, type I	18.2 MΩ·m
Resistance of pure water, type II	15-10 MΩ·m
Withdrawal capacity of high-purity water, type I	≤2 l/min
Withdrawal capacity of pure water, type II	8 l/h
Bacteria content of high-purity water, type I	<0.01 KbE/ml
Endotoxin content of high-purity water, type I	<0.001 EU/ml
Protease content of high-purity water, type I	<0.15 µg/l
TOC value of high-purity water, type I	<5 ppb
DNase content of high-purity water, type I	<5 pg/ml ng/ml
RNase content of high-purity water, type I	<1 pg/ml ng/ml
Particle content of high-purity water, type I	<1/ml
Port	RS 232, USB-A
Width	253 mm
Depth	520 mm
Height	530 mm
Weight	19 kg
Min. operating pressure	0.5 bar
Max. operating pressure	6 bar
Ambient temperature	2-35 °C
Connection	R ³/₄″
Mains connection	90-240 V, 50/60 Hz
