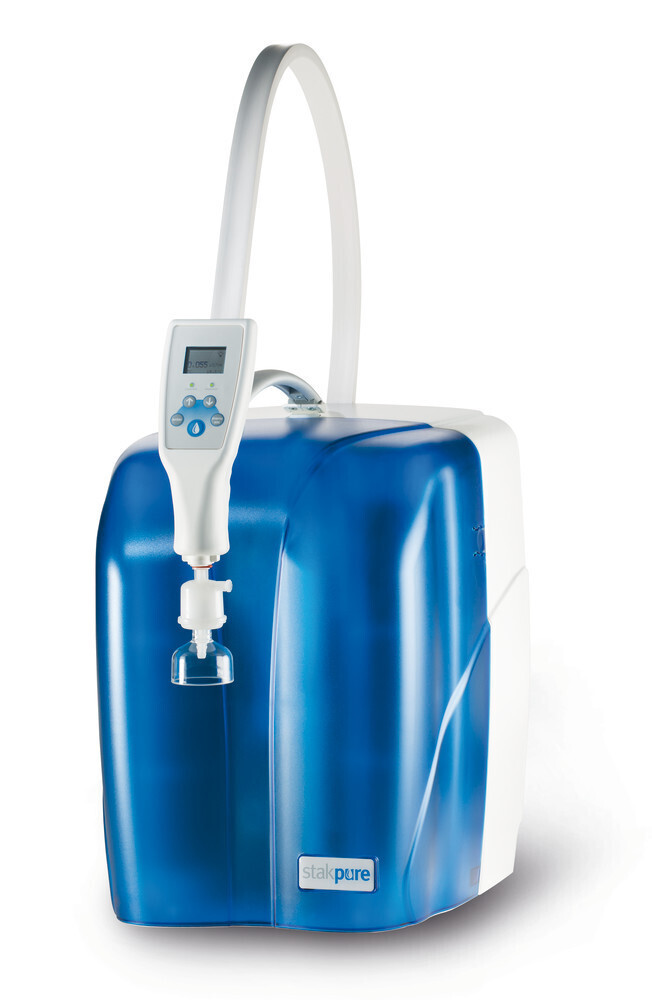

Pure and ultrapure water system OmniaTap series, OmniaTap UV 12 l/h, 1 Piece(s)
SKU KCA4.1
€ 8 270,30
In stock
1
Save this product for later
Pure and ultrapure water system OmniaTap series, OmniaTap UV 12 l/h, 1 Piece(s)
Product Details
HS code: 84212100
EAN: 8721028176448
Brand: stakpure
Preparation system for producing both pure and ultrapure water. Directly connectable to the mains water supply. The flexible dispenser is used to draw ASTM Type I ultrapure water. The water is drawn at the touch of a button using the dispenser’s digital control system. An integrated 10-litre tank with recirculation keeps the quality constantly at ASTM Type II. An optionally available pump station can be used to supply downstream devices with pure water (ASTM Type II) from the pure water tank.
- Space-saving mounting on a laboratory bench or optionally on a wall
- OptiFill dispenser as standard
- TapWater set - direct connection to drinking water
- 10 l tank with recirculation system
- Tank volume display in percent
- Simple and cost-effective filter replacement
- RS 232 port
- Leak sensor as standard
- Ready to use, ready to connect, incl. filter cartridges
- Can be operated using just one hand
| Feed water requirements: drinking water acc. to DIN 2000 | |
| Feed water temperature (°C) | +2-35 |
| Feed water pressure (bar) | 0.5-6 |
| Manganese, aluminium and iron content (ppm) | <0.05 |
| Free chlorine (ppm) | <4 |
| Silt density index (SDI) | Max. 3 |
| pH range | 4-11 |
Note: endotoxin concentration and TOC value depend on the quality of the feed water. The 0.2 µm sterile filter capsule is needed to meet the requirements for particle and bacteria contents.
Pure and ultrapure water system OmniaTap series
Typical applications: ultratrace analysis, ICP-MS, HPLC, TOC.
Delivery incl. OmniaTap ultrapure water system with integrated 10-l tank, sterile tank overflow and venting filter, pretreatment cartridge (RO cartridge), ultrapure water cartridge, sterile filter capsule 0.2 μm, 3 x PE hoses Ø 8 mm, L 2.5 m, water connection adapter R 3/4″. Also includes a UV lamp and/or ultrafiltration module (UF) depending on the model.
Technical Information
| Type | OmniaTap UV 12 l/h |
| Conductivity of high-purity water, type I | 0.055 µS/cm |
| Conductivity of pure water, type II | 0.067-0.1 µS/cm |
| Resistance of high-purity water, type I | 18.2 MΩ*cm |
| Resistance of pure water, type II | 10-15 MΩ*cm |
| Withdrawal capacity of high-purity water, type I | 2 l/min |
| Withdrawal capacity of pure water, type II | 12 l/h |
| Bacteria content of high-purity water, type I | <0,1 KbE/ml |
| TOC value of high-purity water, type I | 1-5 ppb |
| Particle content of high-purity water, type I | <1 particle per ml (particle size >0.2 μm) |
| Width | 390 mm |
| Depth | 615 mm |
| Height | 725 mm |
| Weight | 21 kg |
| Min. operating pressure | 2 bar |
| Max. operating pressure | 6 bar |
| Ambient temperature | 2-35 °C |
| Connection | R 3/4″ |
| Mains connection | 100-240 V, 50/60 Hz |
