Name: Complete electrophoresis system ROTIPHORESE® PROfessional runVIEW
Brand: Thistle Scientific Ltd
SKU: 4849.1
Price: 3099.58 EUR
Availability: InStock

Complete electrophoresis system ROTIPHORESE® PROfessional runVIEW

Product Details

CAS number: 65391-42-6

Chemical formulas: C16H24N2O4 · HCl

HS code: 90272000

Brand: Thistle Scientific Ltd

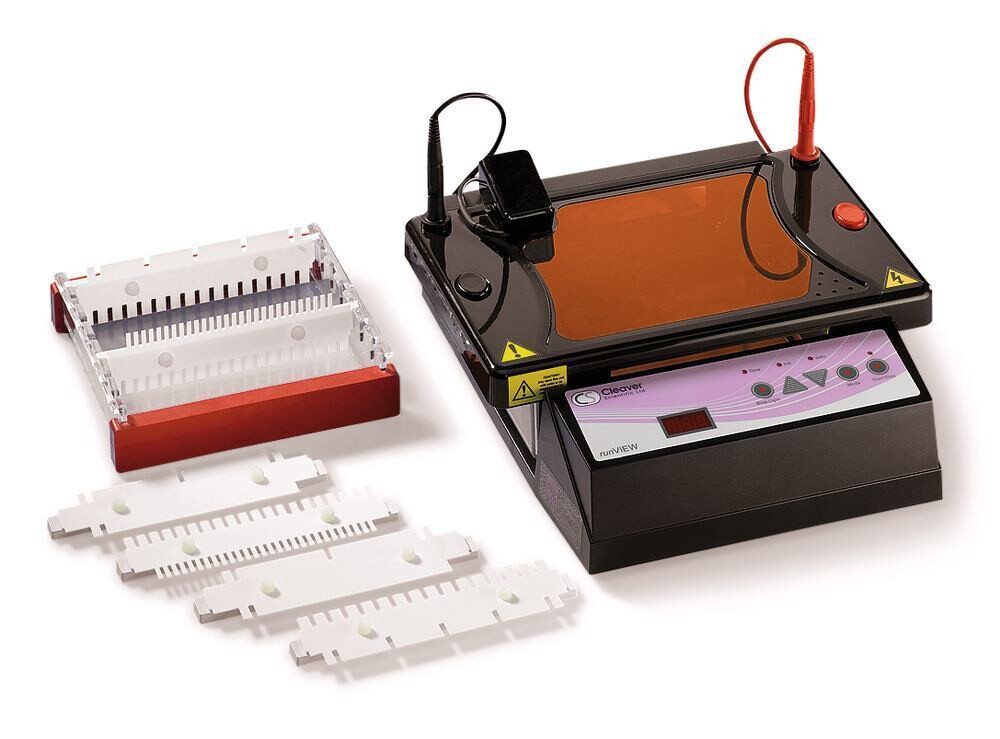

ROTIPHORESE® Unit PROfessional runVIEW, complete set, gel size 15 x 15 cm, incl. ROTIPHORESE® PROfessional runVIEW base station, 1 horizontal gel unit with special lid for blue light, 2 power leads (4 mm plugs), 1 casting tray (15 x 15 cm) with 2 gel casting gates, 8 double-sided combs.

All-in-one system for real-time electrophoresis:
unit, power supply and illuminator combined

Geschikt voor:

Watch your bands migrate through the gel in blue light - without mutagen or retina damaging effects
Recommended for use with SYBR^®Green, ROTI^®GelStain (green) and ROTI^®GelStain Red (red), compatible with ethidium bromide and common alternatives such as SYBR^® Green
Gel width 15 cm
First choice for rapid gel analysis, gel elution and all control gels
Suitable accessories are the runVIEW dark hood (Art. No. 1348.1) and the runDOC gel documentation system (Art. No. 1315.1).

Gebruiksinstructies

Innovative, all-in-one system for electrophoresis - with integrated power supply and illuminator. Stained DNA is made visible during the run by excitation with blue light of 470 nm wave length and a special lid with integrated emission filter for green and red fluorescence. DNA stained during the run by SYBR^® Green, ROTI^®GelStain (green), ROTI^®GelStain Red (red), ethidium bromide or another common replacement dye can be watched in real-time without having damaging effects caused by short wave lengths.
In this way, all work can be carried out directly on the laboratory bench. Transport of the gel is no longer necessary.

The compact arrangement of the devices and the simple control panel guarantee uncomplicated use. For high flexibility in application, gel trays with 7, 10 and 15 cm length are available. Also seven different combs in four thicknesses, including preparative combs with broad wells. For all accessories see electrophoresis unit ROTIPHORESE^®PROfessional III (Art. No. 2850.1).

Complete electrophoresis system ROTIPHORESE^® PROfessional runVIEW

Figure: Marker DNA with green fluorescent dye under blue light. Picture taken during the run. 100 bp Ladder, pBR328 Mix I and 1 kbp Ladder (1.2 µg each) in 1% agarose / 0.5x TBE.

Figure: Unit under blue light, without lid

Figure: Unit under blue light, with green-filtering lid

Figure: Gel elution can be performed very easily by simply letting the DNA band of choice migrate into a second row of wells, and then stopping the run at the right time.

Levering incl. 1 ROTIPHORESE^®PROfessional runVIEW base (base station with integrated blue light and power supply, also available individually under order no. 4850.1), 1 horizontal gel chamber ROTIPHORESE^®PROfessional III (also available individually under order no. 2850.1), 1 special lid for blue light (also available individually under order no. 3077. 1) with integrated spectral emission filter for green and red fluorescence and electrophoresis cables (4 mm plug), 1 UV-transparent gel carrier tray (15 x 15 cm) with 2 gel casting barriers, 8 double-sided combs, compatible with multichannel pipettes: 2 x 4/16 samples and 4 x 20/28 samples (1 mm each), 1 x 4/16 samples and 1 x 20/28 samples (3 mm each).

Technische informatie

Type	PROfessional runVIEW complete system
L x B gel	15 cm × 15 cm
Aantal monsters max.	210
Buffervolume	500 ml
Kamposities	6
L x B x H toestel	17.5 x 26.5 x 9 cm
Golflengte	470 nm
Stroomsterkte	max. 300 mA
Vermogen	max. 30 W
Displaytype	LED display
Aansluiting	Outlets: 1 Parallel socket pairs: 4 mm
Veiligheidsvoorzieningen	Detection of "no load"
Omgevingstemperatuur	15-40 °C
Gewicht	2.6 kg
Netspanningaansluiting	25-150 V

Overview of Horizontal Electrophoresis Units acc. to Gel Size

Gel Size	Suitable for	Unit	Art. No.
6 x 7,5 cm	Agarose	MINI	N562.1
7 x 7 cm	Agarose	PROfessional l	2788.1
8 x 10 cm	Agarose	MINIeasy	N817.1
10 x 10 cm	Agarose	PROfessional ll	2799.1
10 x 11,5	Agarose	MIDI 1	N576.1
15 x 15 cm	Agarose	PROfessional lll	2850.1
15 x 15 cm	Agarose	PROfessional runVIEW	4849.1
15 x 15 cm	Agarose	MIDI PLUS	HP70.1
15 x 7 to 15 x 20 cm	Agarose	VARIA 1	AE17.1
15 x 20 cm	Agarose	PROfessional lll Stretch 20	9940.1
15 x 25 cm	Agarose	PROfessional lll Stretch 25	9941.1
20 x 20 cm	Agarose	PROfessional lV	2941.1
20 x 20 cm	Agarose	MIDI 2	N596.1
20 x 20 cm	Agarose	MIDI 2 cooled	N618.1
24 x 20 cm	Agarose	PROfessional Acetate	3099.1
25 x 25 cm	Agarose, IEP, Membrane	MULTI (flat bed)	CP51.1
25 x 30 cm	Agarose	MAXI	N610.1
25 x 30 cm	Agarose	MAXI cooled	N619.1
26 x 32 cm	Agarose	PROfessional V	3000.1
