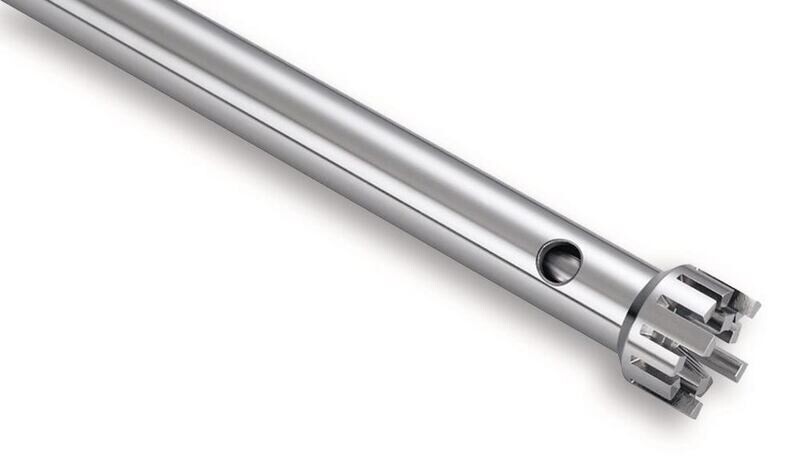

Type | S 25 N - 25 G |
Working range | 50 to 2000 ml |
Ø Stator | 25 mm |
Ø Rotor | 17 mm |
Gap width between stator and rotor | 0.5 mm |
Immersion depth | 40–165 mm |
Materials in contact with product | PTFE, AISI 316L |
Temperature range | to +180 °C |
Ultimate fineness, emulsions | 1–10 µm |
Ultimate fineness, suspensions | 15–50 µm |
