Gel documentation system gelLITE, UV transilluminator, white and blue light converter 1 pc

Gel documentation system gelLITE, UV transilluminator, white and blue light converter 1 pc

SKU 1Y4N.1
€ 8 057,53
In stock
1
Save this product for later
Gel documentation system gelLITE, UV transilluminator, white and blue light converter 1 pc
Product Details
HS code: 90275000
Brand: Cleaver Scientific

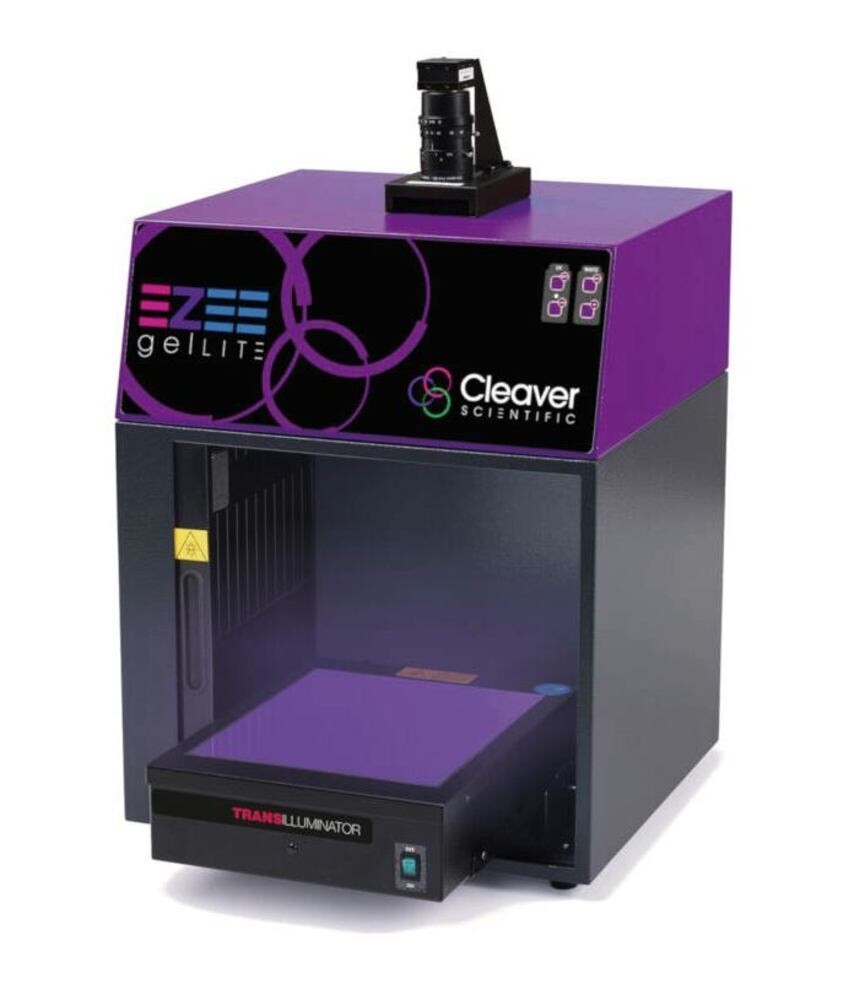

Compact documentation system for imaging of agarose and PAGE gels.

The gelLITE gel ocumentation syste is an economical and compact system for imaging agarose and PAGE gels.
For easy and intuitive image acquisition, the integrated genePIX software enables you to choose from a selection of pre-programmed protocols. A live preview and manual lens adjustment allow the optimal settings to be achieved quickly. The image can be edited through the software to achieve perfect contrasts and optimise the image display.
The geneQUANT software features pre-loaded DNA ladder standards, enabling simplified quantification of samples. An automated report creation ensures that your results are perfectly documented.

Application:
  • Fluorescence and methylene blue stained agarose gels
  • Imaging of Coomassie-stained protein gels
  • Quantification of DNA in agarose gels
  • Autoradiograph Imaging
  • Imaging of GFP-expressing plants
  • Counting of colony plates

General properties:
  • 3 MP camera
  • Capture software: genePIX Image Capture
  • Analysis software: geneQUANT Image Analysis
  • Image storage formats: SGD, BMP, TIFF, JPEG
  • UV safety switch (when opening the door)

"With the help of the 302 nm UV transilluminator, optimal visualisation of your fluorescence-stained bands is guaranteed. The white light converter also enables high-contrast visualisation of Coomassie or silver-stained protein gels.An additional blue light converter enables gentle illumination of DNA bands, reducing the formation of mutations in your sample and allowing DNA to be safely extracted."

Gel documentation system gelLITE

Not a medical device / Not an IVD product
Technical Information
Type UV transilluminator, white and blue light converter
Wavelength 302 nm
Suitable for Agarose gels, SDS-PAGE gels
Use Gel documentation
Usable for Documentation of agarose and PAGE gels, imaging of plants or bacterial colonies
Dynamic range 3,6 - 4,8
Focusing 6,5 -39
Number of pixels 5
Photosensor 1/3 Inch
Data memory USB, hard disk, network
Port USB
Camera control Manuel
Minimum PC requirements Windows system
USB connection
Recording software genePIX Image Capture
Mains connection 230 V, 50 Hz
Weight 16 kg
Type (camera) 3 MP camera, 12/16 bit
Lens type (camera) Zoom lens
Resolution (camera) 5 MP
Greyscale (camera) 4,096/65,536
Connection (camera) USB 2.0 connection
Type (transilluminator) UV light
Additional info (transilluminator) Can be pulled out of darkroom
Dimensions (transilluminator) 20 x 20 cm
Type (dark hood) Darkroom with sliding door
Footprint (W × D) (dark hood) 40 x 37.5 cm
Shutter (lens) F1.4
