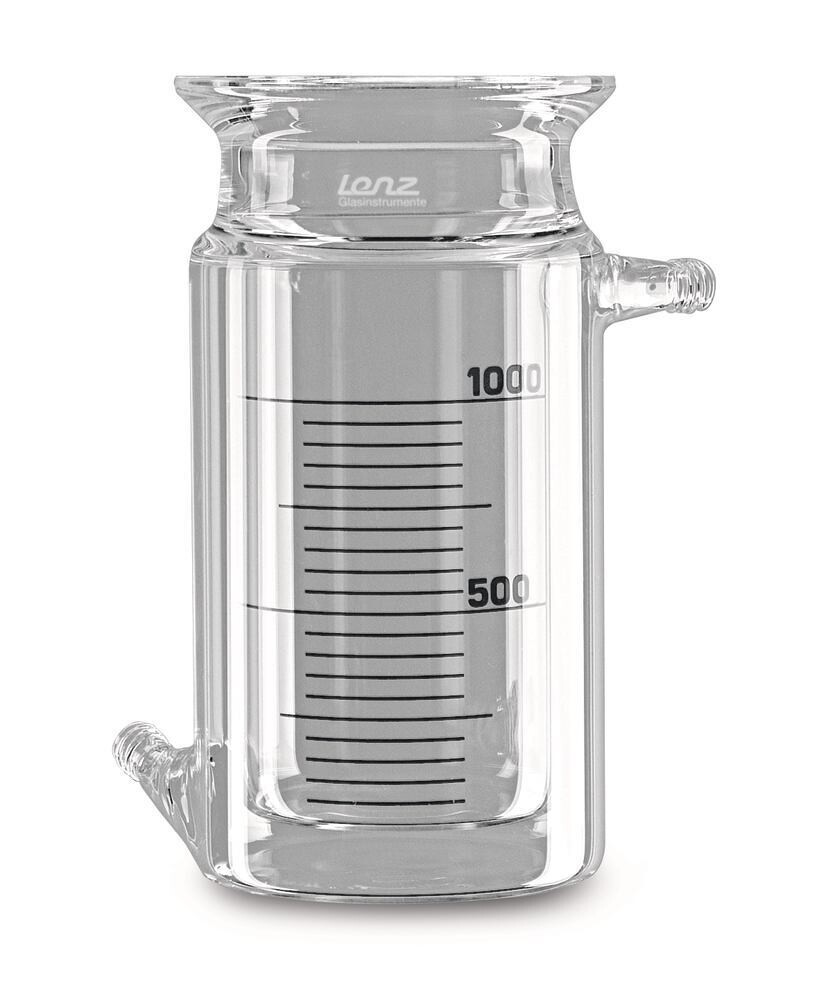

Flat flange reaction vial, cylindrical, graduated, with tempering jacket GL connecting piece, DN 60, 500 ml, 90 mm, 1 Piece

Flat flange reaction vial, cylindrical, graduated, with tempering jacket GL connecting piece, DN 60, 500 ml, 90 mm, 1 Piece

SKU 21K0.1
€ 513,01
In stock
1
Save this product for later
Flat flange reaction vial, cylindrical, graduated, with tempering jacket GL connecting piece, DN 60, 500 ml, 90 mm, 1 Piece
Product Details
HS code: 70172000
Material: DURAN®-glass
Size: 500 ml
EAN: 8721028095558
Brand: Lenz
Material: DURAN® glass.

Reaction vial, cylindrical, graduated with groove in the flat flange. The reaction vial is enclosed in a tempering jacket. The tempering jacket has two connection pieces (either GL threaded connection (GL 14 or GL 18) or ball flange connection (ball flange-ball; KF 15 or KF 25). The flat flange reaction vial is closed with a lid which is available separately. Both parts are held together by a clamping ring. A sealing ring, or the use of grinding grease, prevents the grinding surfaces from jamming. Suitable silicone and FEP sealing rings are available separately. The flat flange vial can be combined with other components (e.g. coolers, stirrer shafts and dropping funnels) by means of various standard ground joints in the lid.Applications: preparatory work, such as general reactions, distillation, evaporation and drying, which produce solid or viscous substances.

  • Excellent chemical resistance
  • High temperature resistance
  • Suitable for use under vacuum
  • Flat flange with groove: a sealing ring can be inserted into the groove to seal the vial tightly


Flat flange reaction vial, cylindrical, graduated, with tempering jacket GL connecting piece

Delivery incl. flat flange reaction vial with 2 plastic connectors and 2 GL screw caps with bore. Delivery without flat flange lid, sealing ring and clamping ring; please order separately.
Technical Information
Version DN 60
Nominal volume 500 ml
Ø ext. 90 mm
Ø internal 60 mm
Total height 275 mm
Inner height 255 mm
Thread GL 14
Show More
You May Also Like
9-Ethyl-9H-carbazole-3-carboxylic acid, 95%, 100mg
9-Ethyl-9H-carbazole-3-carboxylic acid, 95%, 100mg
9-Ethyl-9H-carbazole-3-carboxylic acid, 95%, 100mg
SKU F027340-100MG
€ 17,60
4'-Methoxybiphenyl-3-ylamine, 95.0%, 5g
4'-Methoxybiphenyl-3-ylamine, 95.0%, 5g
4'-Methoxybiphenyl-3-ylamine, 95.0%, 5g
SKU F014343-5G
€ 145,20
2-IODO-5-PHENYLTHIOPHENE, 95.0%, 250mg
2-IODO-5-PHENYLTHIOPHENE, 95.0%, 250mg
2-IODO-5-PHENYLTHIOPHENE, 95.0%, 250mg
SKU F471991-250MG
€ 25,30
4-Chloro-6-nitro-m-cresol>98.0%(GC)25g
4-Chloro-6-nitro-m-cresol>98.0%(GC)25g
4-Chloro-6-nitro-m-cresol>98.0%(GC)25g
SKU C1684-25G
€ 625,90
4-Bromo-1-propyl-1H-imidazole, 95.0%, 1g
4-Bromo-1-propyl-1H-imidazole, 95.0%, 1g
4-Bromo-1-propyl-1H-imidazole, 95.0%, 1g
SKU F462266-1G
€ 744,70
1-Isopropyl-2-nitrobenzene, 95.0%, 250mg
1-Isopropyl-2-nitrobenzene, 95.0%, 250mg
1-Isopropyl-2-nitrobenzene, 95.0%, 250mg
SKU F241909-250MG
€ 22,00

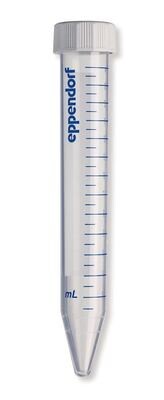

Centrifuge tubes Eppendorf Conical Tubes® 15 ml Transparent, Sterile, bag, Pyrogen-, DNase-, RNase-, DNA-free, 500 Piece(s)
