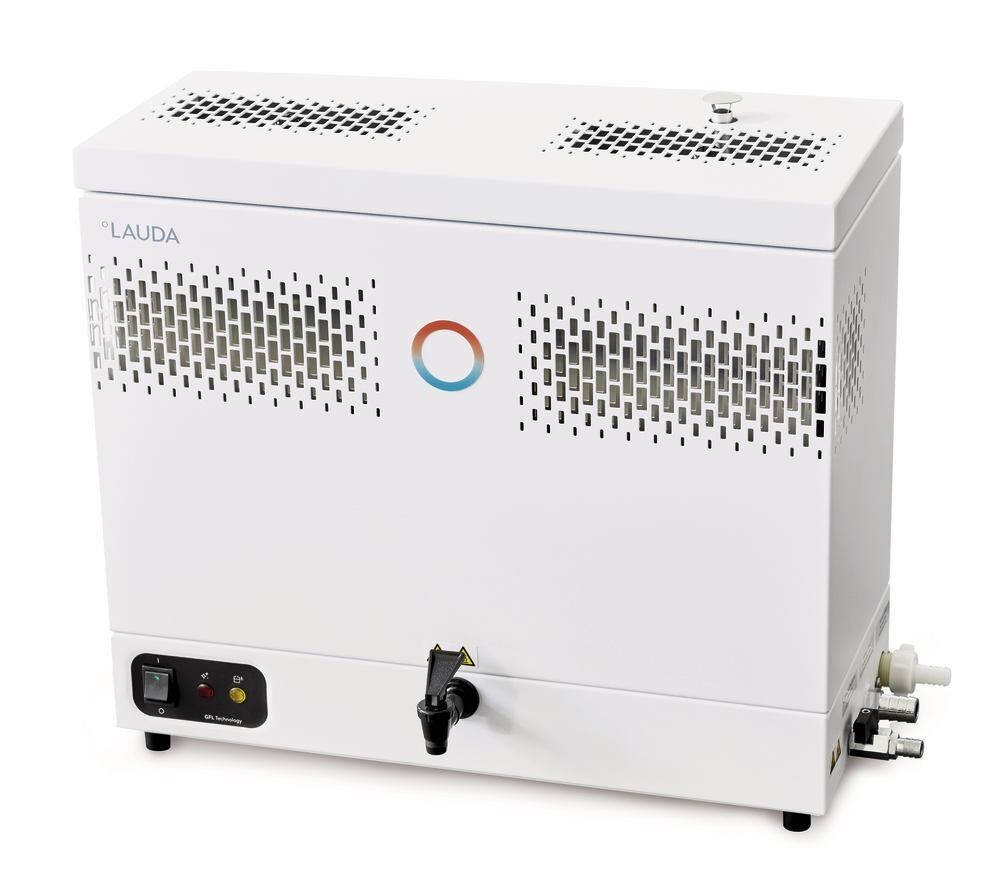

Water still Puridest made of stainless steel PD D series, PD 8 D, 8 l/h, 1 Piece(s)
SKU 1P8A.1
€ 7 436,50
In stock
1
Save this product for later
Water still Puridest made of stainless steel PD D series, PD 8 D, 8 l/h, 1 Piece(s)
Product Details
HS code: 84194000
EAN: 8721028176004
Brand: Lauda
Fully automatic device for creating ultra-pure distilled water.
Tubular heating element and still made of stainless steel. Housing made of galvanized sheet steel, powder-coated.
- Energy saving thanks to distilling heated cooling water
- CO2 degassing opening on the condenser
- Still easily accessible for cleaning purposes
Please pay attention to supply voltages!
Water still Puridest made of stainless steel PD D series
Bi-still without reservoir, suitable for wall mounting and tabletop use.
- Tubular heating element and still made of stainless steel
- Condenser (cooling coil) 1st stage made of stainless steel, 2nd stage including spray prevention made of DURAN® borosilicate glass 3.3
- Mono-distillate tap stopcock made of borosilicate glass 3.3 with plugs made of PTFE, bi-distillate free-flow tap with dust protection cover made of borosilicate glass 3.3
- Solenoid valve for controlling the water supply
- Water saving thanks to automatic switch-off function preventing unnecessary water consumption
- Electronic contamination monitoring of the still with distillation stop and visual cleaning indicator
- Electronic level monitoring throughout the entire distillation process
- Double low-water safety function with float switch and thermostatic overtemperature protection switch
- Master switch and indicator lights for monitoring both distillation stages
- Double-wall housing design
Technical Information
| Type | PD 8 D |
| Production output | 8 l/h |
| Heating output | 11500 W |
| Conductivity mono destillate at 25 °C | 2.2 µS/cm |
| Conductivity bi destillate at 25 °C | 1.6 µS/cm |
| Width | 700 mm |
| Depth | 390 mm |
| Height | 700 mm |
| Max. operating pressure | 7 bar |
| Connection | water cooling intake: 1/2″ |
| Water consumption | 3.3 l/min |
| Intake power | 11500 W |
| Mains connection | 400 V, 3/N/PE, 50/60 Hz |
| Power cord | with plug (IEC 60309, 5-pin, CEE, red, 16 A) |
