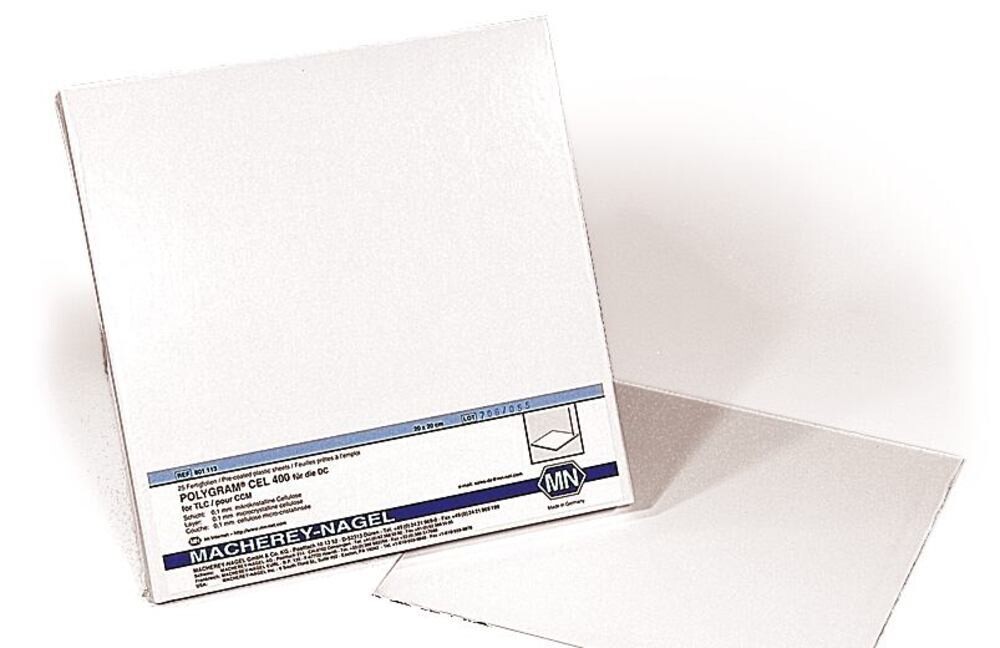

Placas TLC POLYGRAM® CEL 400 / UV254, 20 x 20 cm, 25 pieza(s)

Placas TLC POLYGRAM® CEL 400 / UV254, 20 x 20 cm, 25 pieza(s)

REF 1333.1
€ 184,04
Disponible
1
Guardar este producto para más tarde
Placas TLC POLYGRAM® CEL 400 / UV254, 20 x 20 cm, 25 pieza(s)
Información del producto
Código hs: 38229000
EAN: 8721028178190
Marca: Macherey-Nagel
Material: polyester with Cellulose MN 400 (AVICEL®), with fluorescence indicator.

Microcrystalline cellulose, cellulose MN 400 (AVICEL®)

  • Prepared by hydrolysis of high puritiy cellulose with HCl
  • Mean degree of polymerisation: 40-200

Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!



TLC Plates POLYGRAM® CEL 400 / UV254

Technical Information
Plate format 20 x 20 cm
Layer thickness 0.1 mm
Material polyester
Modification Microcrystalline cellulose
Fluorescent indicator yes
Separation principle Normal phase (NP)
Phase CEL 400
Particle type Fully porous particles (FPP)
pH stability 2,0-8,0
Temperature stability High
Recommended application(s) Carboxylic acids, lower alcohols, urea and purine derivatives

Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!


Thin Layer Chromatography (TLC)

Although the principle of thin-layer chromatography is more than a century old, it did not make its breakthrough as an analytical method until about 50 years ago.
Thanks to the development of new sorbents and supports, as well as increasing instrumentation and automation, TLC has become a versatile separation method. It is used both in qualitative analysis and in quantitative analysis.
Applications range from simple manual separation processes in classic TLC to automated processes in HPTLC (high performance thin layer chromatography).

Advantages of thin layer chromatography:

  • Higher sample throughput in less time
  • Suitable for screening tests
  • Pilot process for HPLC
  • The ready-to-use TLC layer functions as a data storage device for separation results
  • The separated substances can be used later for further analysis (e.g. IR, MS)
  • By switching the mobile and the stationary phases, the separation process can be optimised quickly and cost-efficient

Mostrar más
