Analysis mill A 10 basic, 1 piece
SKU EEA9.1
€ 2 496,31
In stock
1
Save this product for later
Analysis mill A 10 basic, 1 piece
Product Details
HS code: 84798200
EAN: 8721028071552
Brand: IKA
For shredding hard, brittle, but also soft and fibrous materials. Integrated cooling water connections (for hoses with an inner Ø 8 mm). Replaceable stainless steel beater. Operation only possible with closed lid.
- Digital timer (can be set to between 1 s and 5 min) that shows the comminuting time
- Interval function (if the timer function has been activated, the equipment runs for 15 s and then stops for 1 s, repeating this pattern until the set time has elapsed)
- Max. processing grain size:
6 mm for impact grinding
10 mm for cutting grinding - Max. switch-on duration: 5 min ON / 10 min OFF
Analysis mill A 10 basic

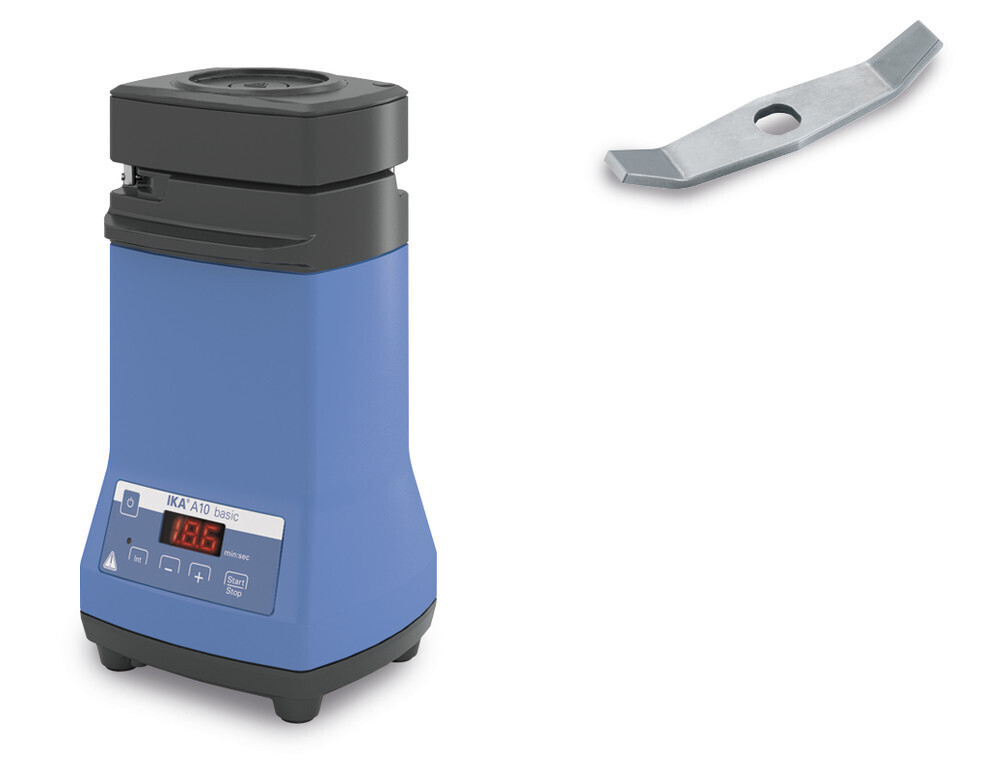

Delivery incl. stainless steel beater type A 10.1 (stainless steel 1.4034) suitable for most brittle materials up to a Mohs hardness of 5 and A 10.4 grinding chamber reducer (stainless steel 1.4301) for small sample material volumes.
Technical Information
| Type | A 10 basic |
| Usable volume | 50 ml |
| Motor power input | 300 W |
| Motor power output | 240 W |
| Max. duty time | Short-term operation (KB 5/10): 5 min ON / 10 min OFF |
| Maximum speed | 25000 rpm |
| Max. circumferential speed | 70 m/s |
| Grinding chamber can be cooled by | Water: yesDry ice: yesLiquid nitrogen: no |
| W x D x H, total | 130 x 145 x 250 mm |
| Weight | 2.9 kg |
| Mains connection | 220-240 V, 50/60 Hz |
Mohs' hardness scale
Designation of degree of hardness of minerals, metals and other products at different hardness stages. Each stage is marked by a reference mineral.
| 1 Mohs | talc | 6 Mohs | feldspar |
| 2 Mohs | gypsum | 7 Mohs | quartz |
| 3 Mohs | calcite | 8 Mohs | topaz |
| 4 Mohs | fluorspar | 9 Mohs | corundum |
| 5 Mohs | apatite | 10 Mohs | diamond |
