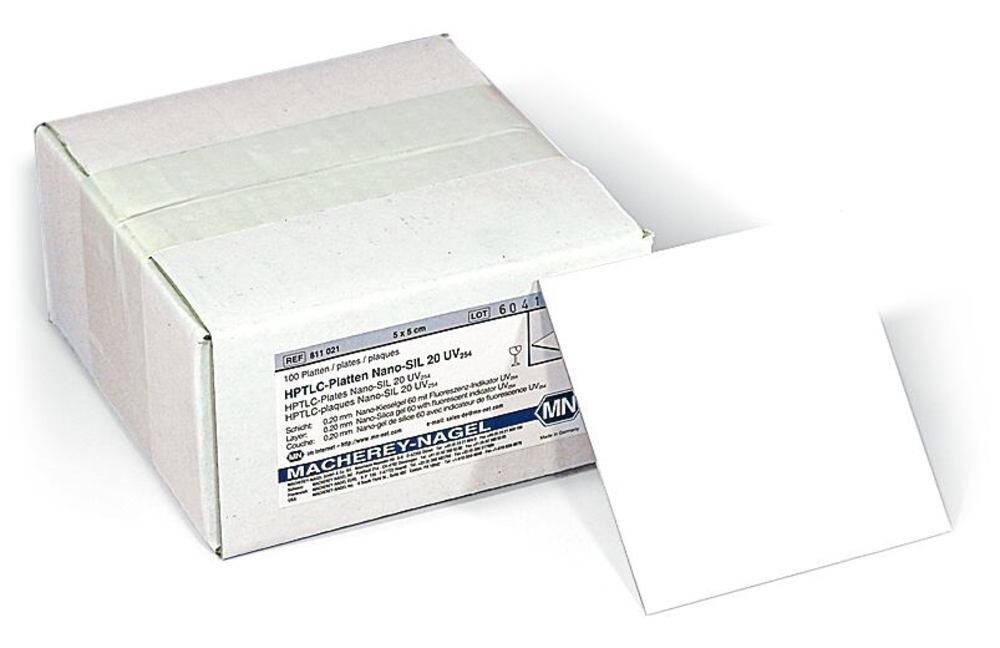

HPTLC Plates ALUGRAM® Nano-SIL G / UV254 with Nano Silica Gel, 20 x 20 cm, 25 Piece(s)

HPTLC Plates ALUGRAM® Nano-SIL G / UV254 with Nano Silica Gel, 20 x 20 cm, 25 Piece(s)

SKU AE85.1
€ 302,55
In stock
1
Save this product for later
HPTLC Plates ALUGRAM® Nano-SIL G / UV254 with Nano Silica Gel, 20 x 20 cm, 25 Piece(s)
Product Details
HS code: 38229000
Material: Aluminium
EAN: 8721028182333
Brand: Carl Roth
Material: aluminium with nano silica gel 60, with fluorescence indicator.

HPTLC Plates with Nano Silica Gel

Nano silica gel:
  • Specific surface: approx. 500 m2/g
  • Medium pore width: 60 Å
  • Specific pore volume: 0,75 ml/g
  • Particle size: 2-10 µm

Advantages over the standard plates:
  • Higher separation effect
  • Shorter separation times and distances
  • Smaller sample amounts of 0.01-0.1 µl (10-100 nanolitre)
  • Lower diffusion due to extremely small amounts
  • Higher detection sensitivity

Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!



HPTLC Plates ALUGRAM® Nano-SIL G / UV254 with Nano Silica Gel

Technical Information
Plate format 20 x 20 cm
Layer thickness 0.2 mm
Material aluminium
Modification Unmodified silica gel (SiOH)
Fluorescent indicator yes
Separation principle Normal phase (NP)
Phase Nano-SIL G
Particle size 2-10 µm
Particle type Fully porous particles (FPP)
Specific surface according to BET 500 m²/g
Pore size 60 Å
Pore volume 0.75 ml/g
pH stability 2,0-8,0
Temperature stability High
Recommended application(s) Aflatoxins, Alkaloids, Amines, Amino acids, Analgetics, Antibiotics, Hormones, Marihuana compounds, Normal phase (NP), Patulin, Steroids, Sweeteners, Vitamins

Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!


Thin Layer Chromatography (TLC)

Although the principle of thin-layer chromatography is more than a century old, it did not make its breakthrough as an analytical method until about 50 years ago.
Thanks to the development of new sorbents and supports, as well as increasing instrumentation and automation, TLC has become a versatile separation method. It is used both in qualitative analysis and in quantitative analysis.
Applications range from simple manual separation processes in classic TLC to automated processes in HPTLC (high performance thin layer chromatography).

Advantages of thin layer chromatography:

  • Higher sample throughput in less time
  • Suitable for screening tests
  • Pilot process for HPLC
  • The ready-to-use TLC layer functions as a data storage device for separation results
  • The separated substances can be used later for further analysis (e.g. IR, MS)
  • By switching the mobile and the stationary phases, the separation process can be optimised quickly and cost-efficient
