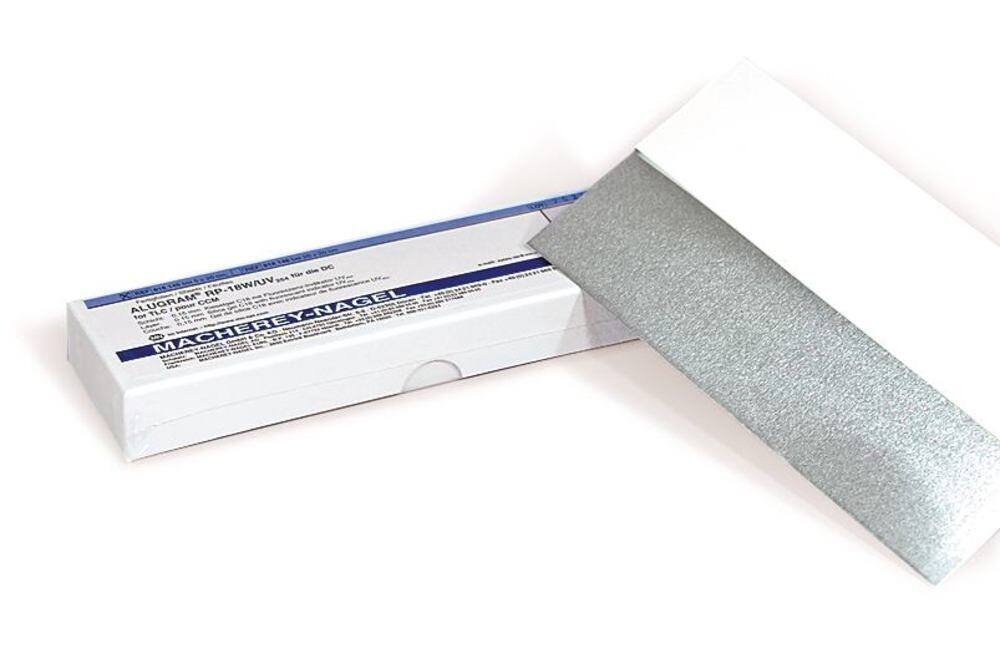

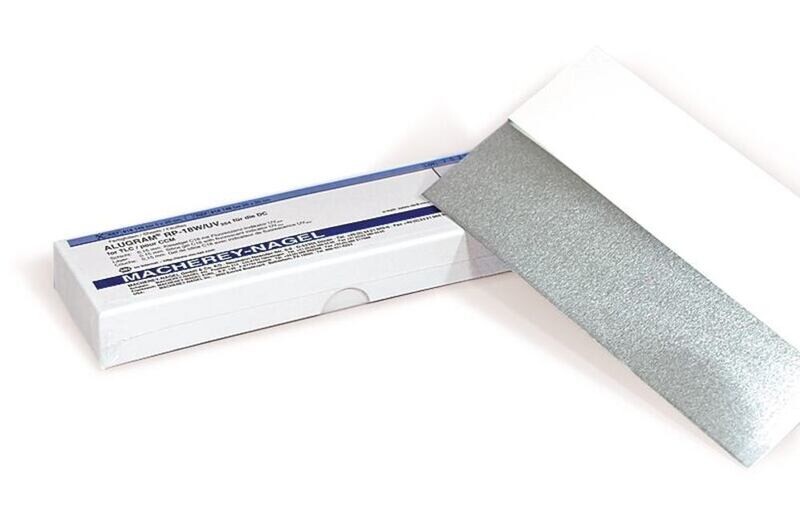

HPTLC Plates RP-18 W / UV254 - octadecyl-modified, 20 x 20 cm, 0.25 mm, 25 Piece(s)

HPTLC Plates RP-18 W / UV254 - octadecyl-modified, 20 x 20 cm, 0.25 mm, 25 Piece(s)

SKU 3399.1
€ 559,02
In stock
1
Save this product for later
HPTLC Plates RP-18 W / UV254 - octadecyl-modified, 20 x 20 cm, 0.25 mm, 25 Piece(s)
Product Details
HS code: 38229000
Material: Glass
EAN: 8721028182630
Brand: Macherey-Nagel
Material: glass with octadecyl-modified nano silica gel 60, with fluorescence indicator.

Reversed Phase (RP) plates
Carbon content 7.5 %
Partial octadecyl (C18) modification


Order of polarity:
silica > DIOL > NH2 > CN > RP-2 > RP-18 W


Wettable with water


Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!



HPTLC Plates RP-18 W / UV254 - octadecyl-modified

Technical Information
Plate format 20 x 20 cm
Layer thickness 0.25 mm
Material glass
Modification Silica gel with octadecyl (C18, ODS, RP18) modification
Separation principle Reversed phase (RP)
Phase RP-18 W
Particle size 5-17 µm
Particle type Fully porous particles (FPP)
Pore size 60 Å
Pore volume 0.75 ml/g
pH stability 2,0-8,0
Temperature stability High
Recommended application(s) Aminophenols, Barbiturates, Nucleobases, Phthalates, Plasticizers, Polycyclic aromatic hydrocarbons (PAH), Preservatives, RP applications (preparative), Steroids, Tetracyclines, Wettable with water

Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!


Thin Layer Chromatography (TLC)

Although the principle of thin-layer chromatography is more than a century old, it did not make its breakthrough as an analytical method until about 50 years ago.
Thanks to the development of new sorbents and supports, as well as increasing instrumentation and automation, TLC has become a versatile separation method. It is used both in qualitative analysis and in quantitative analysis.
Applications range from simple manual separation processes in classic TLC to automated processes in HPTLC (high performance thin layer chromatography).

Advantages of thin layer chromatography:

  • Higher sample throughput in less time
  • Suitable for screening tests
  • Pilot process for HPLC
  • The ready-to-use TLC layer functions as a data storage device for separation results
  • The separated substances can be used later for further analysis (e.g. IR, MS)
  • By switching the mobile and the stationary phases, the separation process can be optimised quickly and cost-efficient
