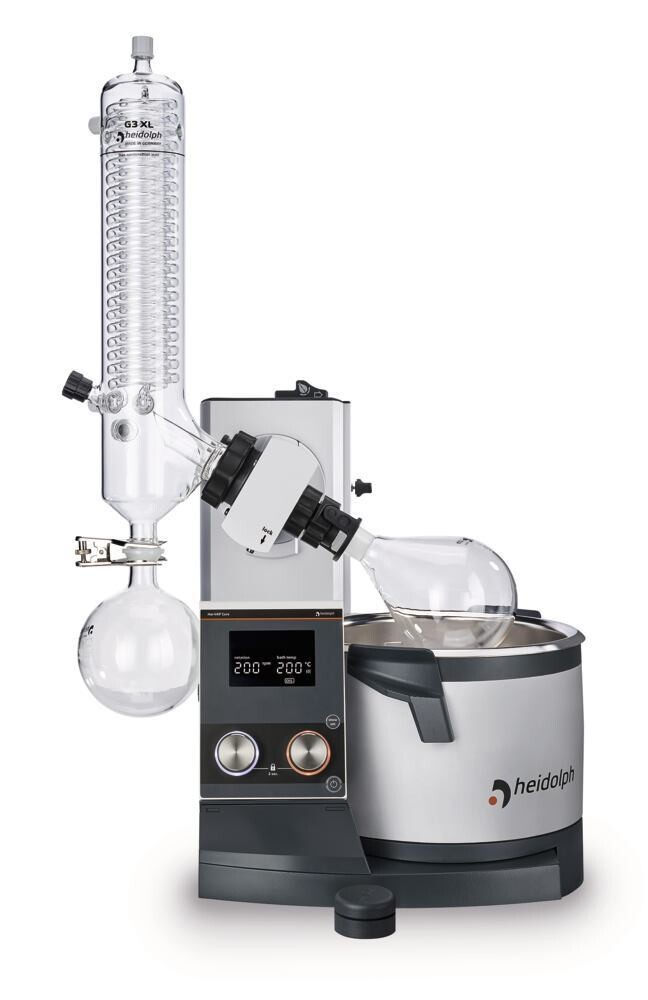

Rotary evaporators Hei-VAP Core Models with hand lift, Vertical cooler G3 XL, Uncoated, 1 Piece

Rotary evaporators Hei-VAP Core Models with hand lift, Vertical cooler G3 XL, Uncoated, 1 Piece

SKU KEA8.1
€ 4 562,48
In stock
1
Save this product for later
Rotary evaporators Hei-VAP Core Models with hand lift, Vertical cooler G3 XL, Uncoated, 1 Piece
Product Details
HS code: 84194000
EAN: 8721028073334
Brand: Heidolph
Joint 1: NS 29/32

  • With manual and motorised lifting
  • Clear 3.5? digital LCD display for viewing current values and key for showing the set values
  • Direct access to rotation and heating bath via separate rotary pressure controller with LED light activity indicator
  • Locking function for values in order to prevent unintentional adjustment or overheating
  • Residual heat warning at >50 °C
  • Standby key stops all functions and, for motorised lift models, moves the evaporating flask out of the heating bath
  • All models are available as a space-saving version with a vertical cooler (type G3) or as a normal version with a diagonal cooler (G1)
  • XL cooler for higher evaporation rates thanks to improved tightness and expanded cooling surface (standard 1400 cm2, XL model 2200 cm2)


Rotary evaporators Hei-VAP Core Models with manual lifting

Delivery incl. device with heating bath and glassware. The glassware consists of a glass hollow shaft, cooler, inlet tube, 1000 ml evaporating flask (NS 29/32) and 1000 ml receiving flask (S 35/20).
Technical Information
Version Vertical cooler G3 XL
Glassware Non-coated
Speed range 10 to 280 rpm
Temperature range +20 to +210 °C
Heating output 1300 W
Setting accuracy ±1 °C
Control deviation ±1 K
Ø internal 255 mm
Bath volume 4,5 l
Evaporation rate at 20/40 °C
Acetone: 2.4/4.7 l/h
Ethanol: 1.6/3.2 l/h
Water: 0.5/1.0 l/h
L x W x H, total 739 x 477 x 920 mm
Mains connection 230 V, 50/60 Hz
