Analysis mill A11 basic, 1 piece
SKU T534.1
€ 2 998,14
In stock
1
Save this product for later
Analysis mill A11 basic, 1 piece
Product Details
HS code: 84798200
EAN: 8721028071569
Brand: IKA
Batch mill with two grinding processes:
- Impact milling of hard, brittle grinding material with a stainless steel beater up to max. Mohs’ hardness scale 6 (beater is included in delivery)
- Blade milling of soft, fibrous grinding material with a cutting knife (not included in delivery)
Moist and sticky process materials can be ground by adding water. The standard grinding beaker (Art. No. T537.1) is suitable for embrittling grinding material with liquid nitrogen directly in the grinding chamber.

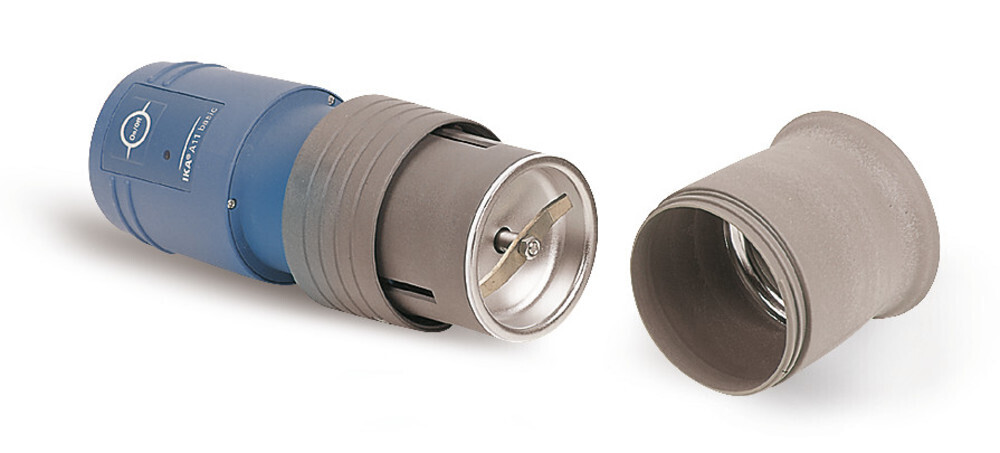

Analysis mill A11 basic
Delivery incl. standard grinding beaker made of ETFE, fibre-glass reinforced with stainless steel inlet (AISI 316L), effective volume 80 ml and stainless steel beater.
Technical Information
| Type | A11 basic |
| Usable volume | 80 ml |
| Motor power input | 300 W |
| Motor power output | 160 W |
| On-load speed | 19500 rpm |
| Max. duty time | Short time operation (KB 1/10): 1 min ON/10 min OFF |
| Idle speed | 28000 rpm |
| Max. circumferential speed | 53 m/s |
| W x D x H, total | 85 x 85 x 240 mm |
| IP rating | 43 |
| Weight | 1.5 kg |
| Mains connection | 230 V, 50/60 Hz |
Mohs' hardness scale
Designation of degree of hardness of minerals, metals and other products at different hardness stages. Each stage is marked by a reference mineral.
| 1 Mohs | talc | 6 Mohs | feldspar |
| 2 Mohs | gypsum | 7 Mohs | quartz |
| 3 Mohs | calcite | 8 Mohs | topaz |
| 4 Mohs | fluorspar | 9 Mohs | corundum |
| 5 Mohs | apatite | 10 Mohs | diamond |
